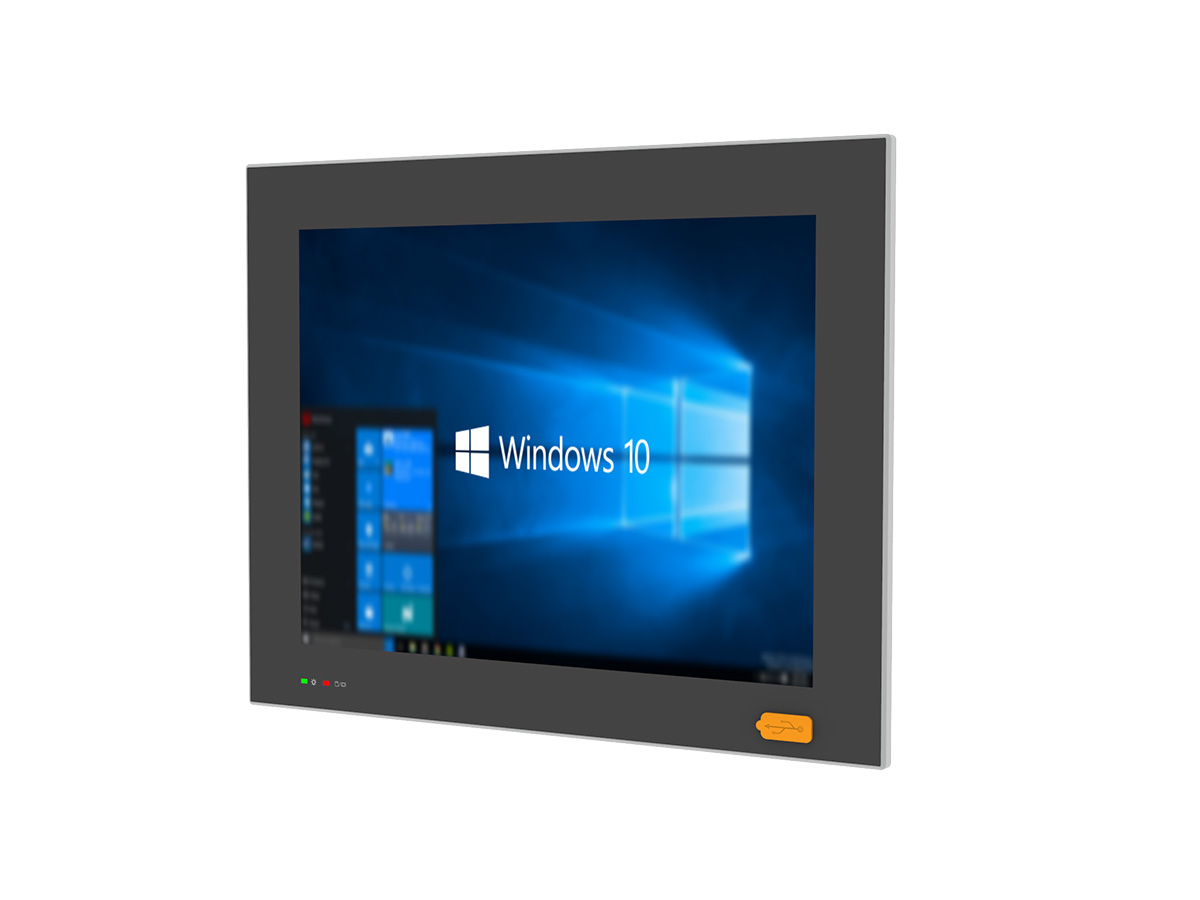

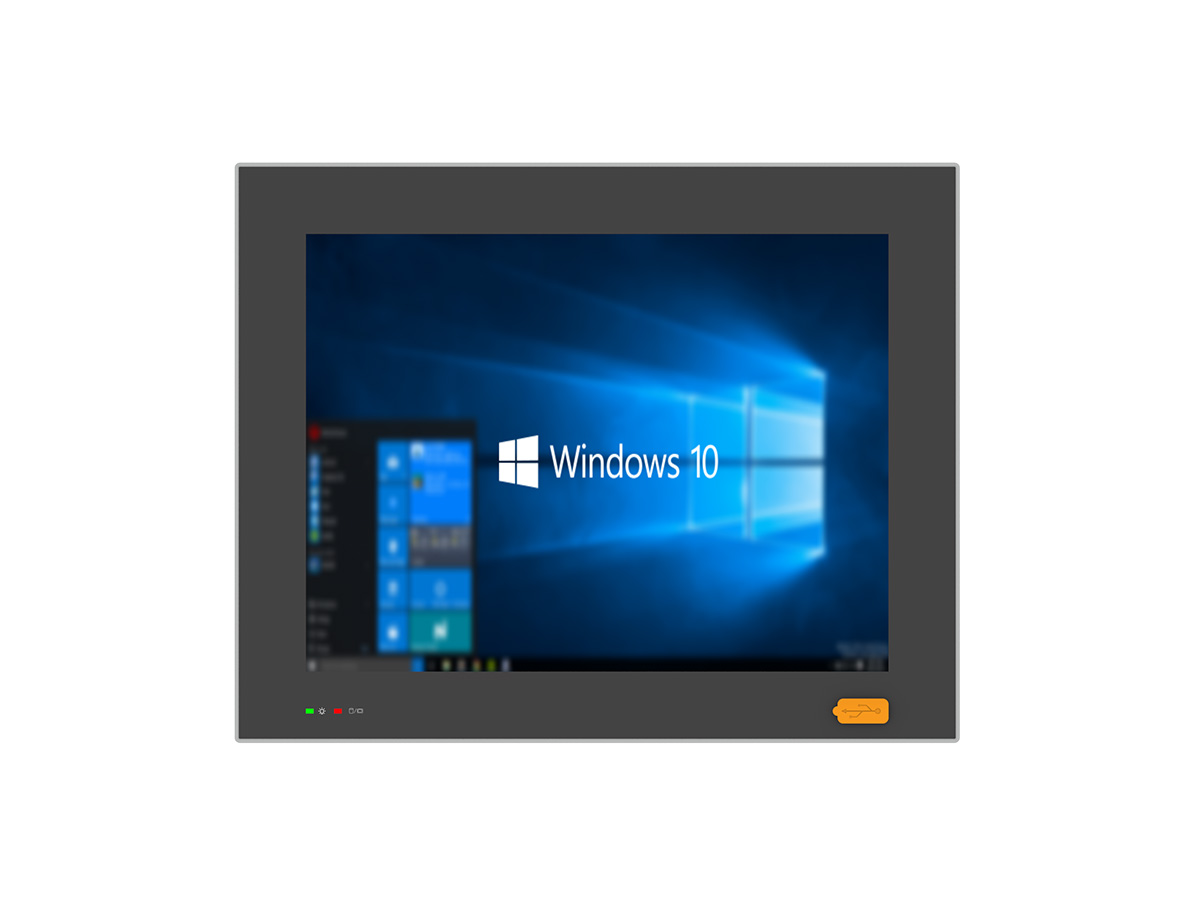

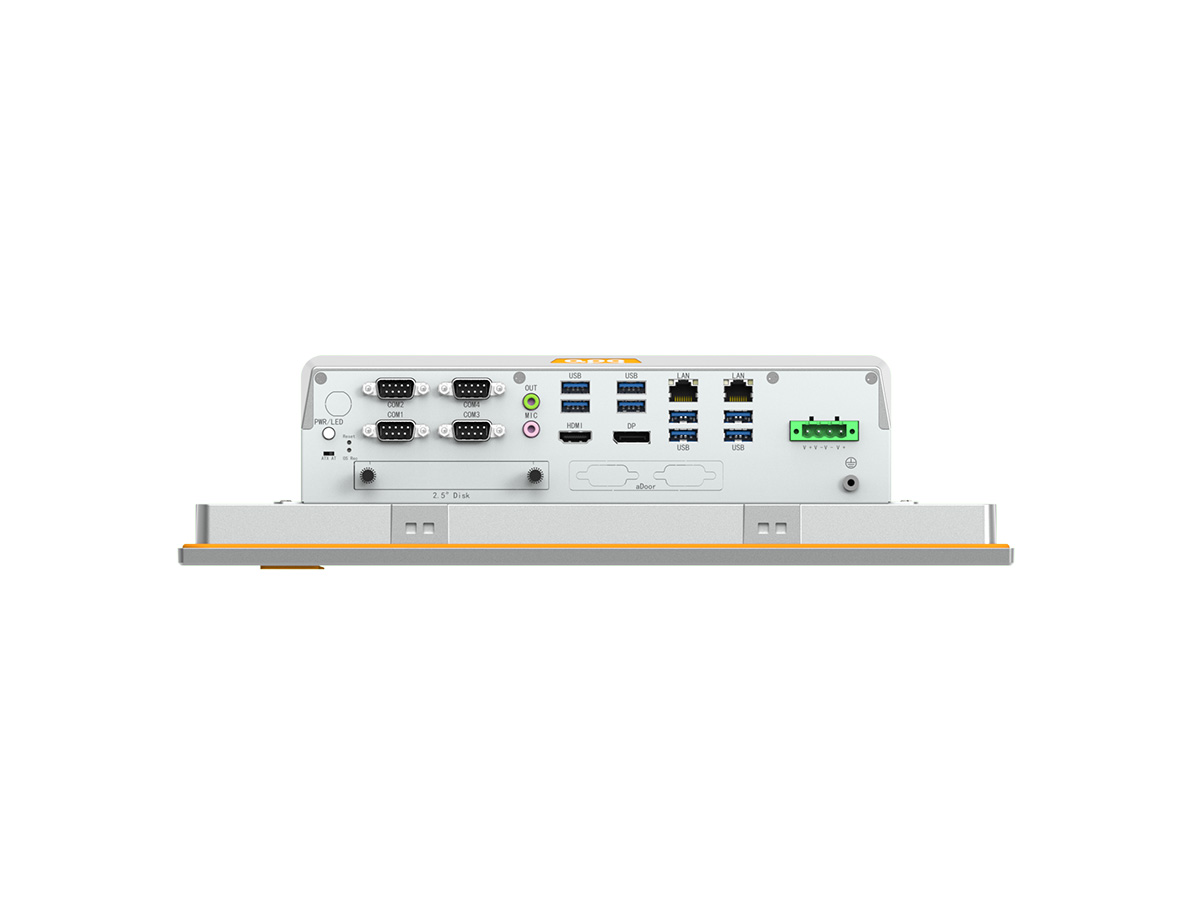

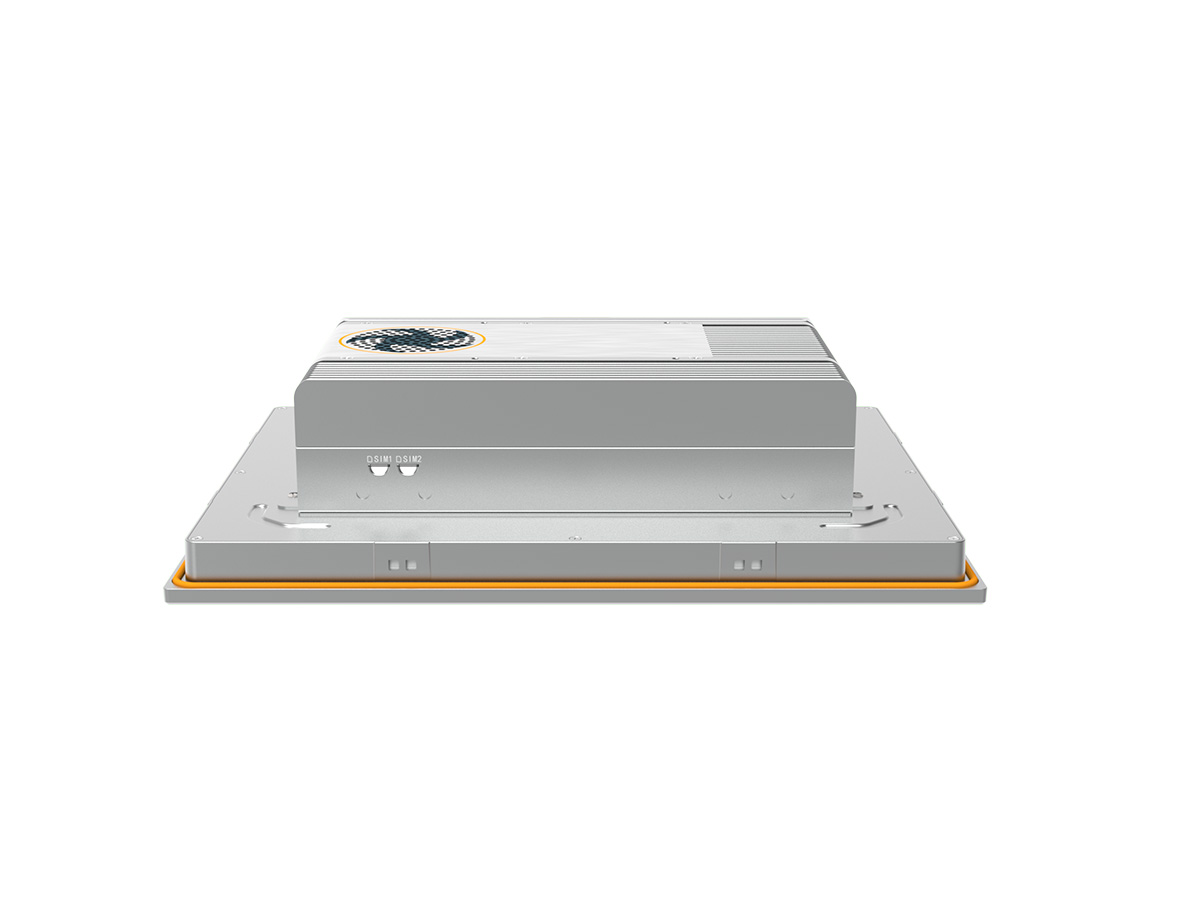

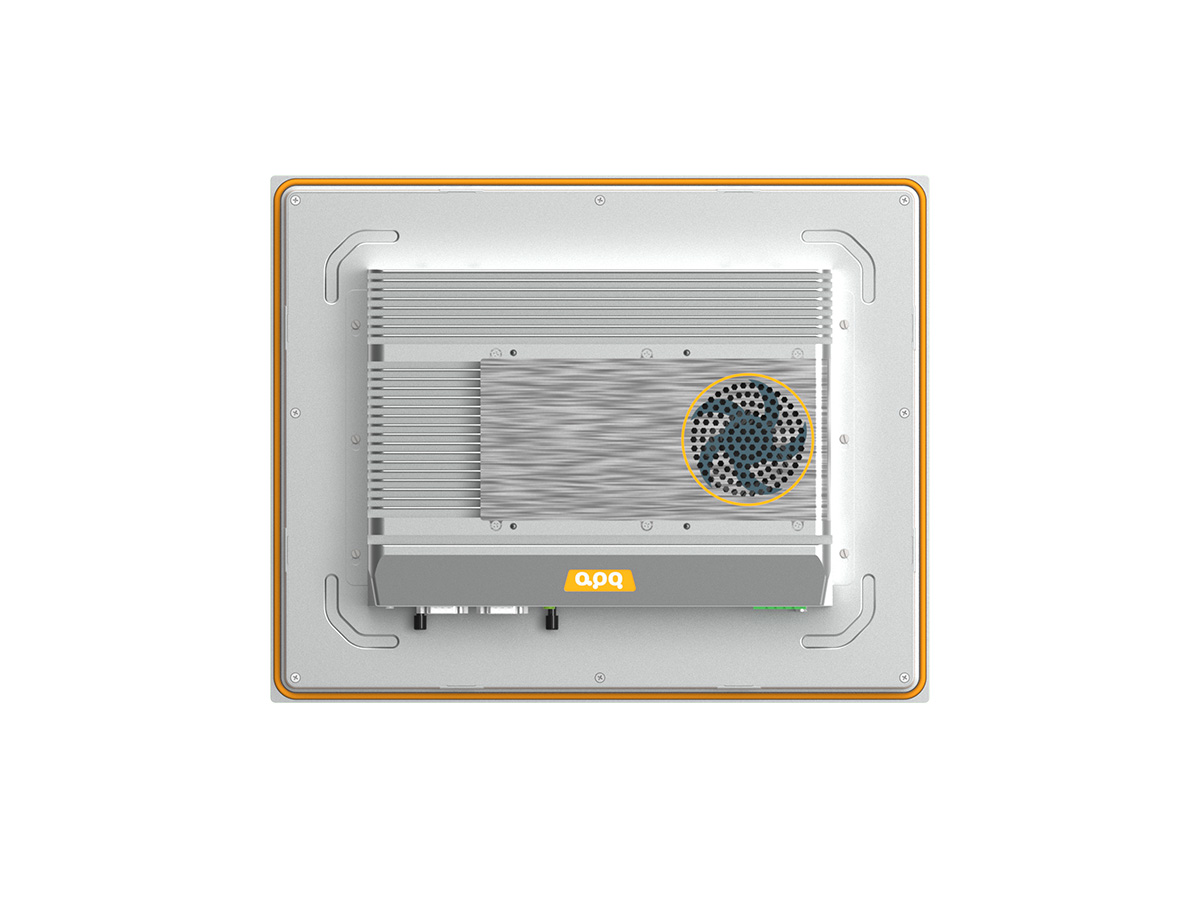

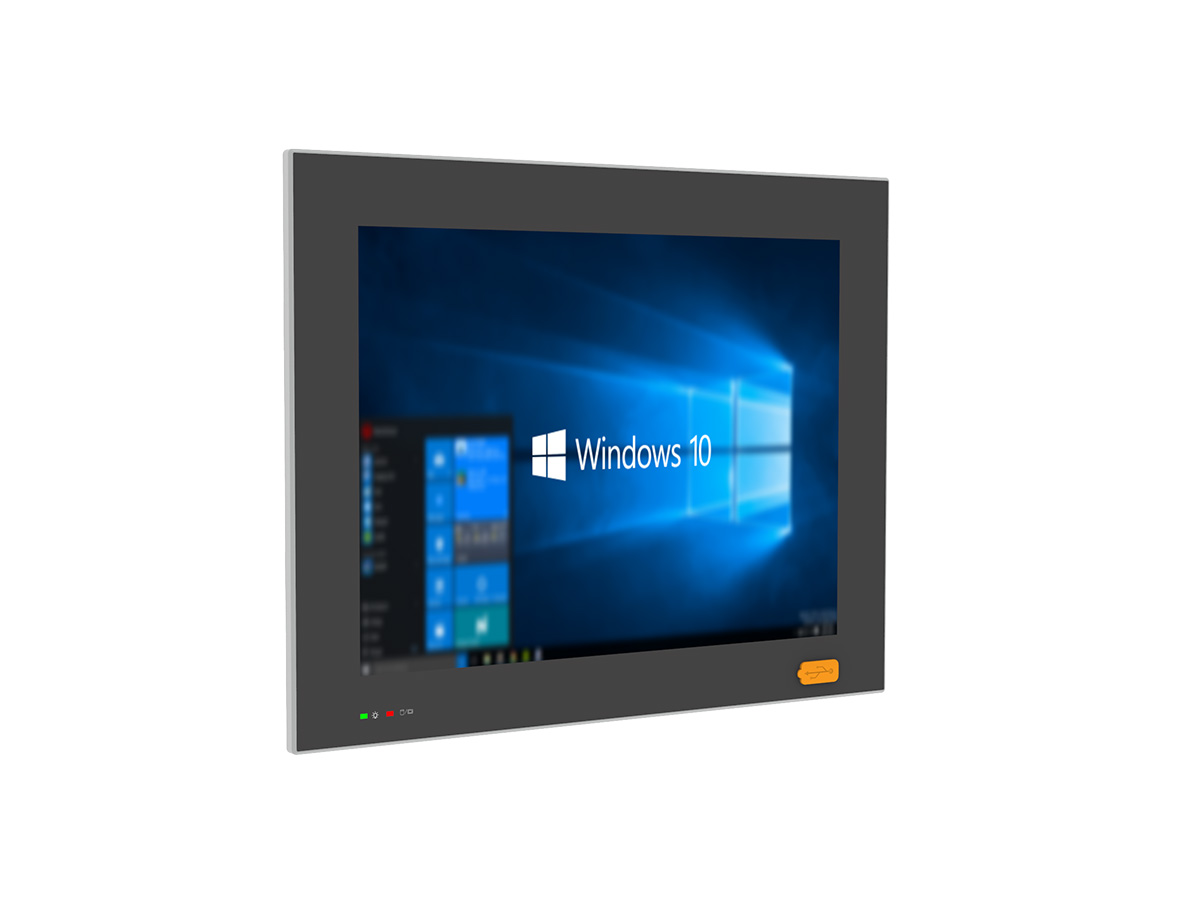

Note: The product image shown above is the PL150RQ-E7S-Q670 model

PLE7S系列Q670平臺工業一體機/工業平板電腦電阻觸摸屏

特點:

全屏電阻觸摸屏設計
模塊化設計12.1~21.5″可選,支持方屏/寬屏
前面板滿足IP65要求
前面板集成USB Type-A和信號指示燈
支持Intel? 12th/13th Gen Core/Pentium/Celeron Desktop CPU, TDP 65W, LGA1700
搭配Intel? Q670芯片組
2個Intel網絡接口 (1 * 1GbE&1 * 2.5GbE)
3路顯示輸出 HDMI，DP++和內部LVDS, 最高支持4K@60Hz分辨率
豐富的USB、串口擴展接口和PCIe、mini PCIe、M.2擴展插槽
智能風扇主動散熱

遠程管理
狀態監控
遠程運維
安全控制

聯系我們

掃碼即可添加微信，售前客服為您提供咨詢服務

產品描述

阿普奇全PLxxxE7S系列Q670平臺工業一體機是一款卓越的工業級設備，專為嚴苛的工業環境而設計。采用穩定的全屏電阻觸摸屏技術，為用戶提供流暢、精準的觸控體驗，模塊化設計，支持12.1~21.5英寸的屏幕尺寸，并可選擇方屏或寬屏顯示。其堅固耐用的前面板符合IP65要求，能夠應對各種惡劣的工業環境。支持Intel最新的12/13代Core/Pentium/Celeron處理器，并搭配Q670芯片組，提供強大的性能和高效的能耗控制。此外，它還集成了2個高速的Intel網絡接口（1GbE & 2.5GbE），支持高速網絡連接和數據傳輸。提供3路顯示輸出，包括HDMI、DP++和內部LVDS，最高支持4K@60Hz分辨率。此外，它還配備了豐富的擴展接口，包括USB、串口、PCIe、mini PCIe和M.2插槽，方便用戶連接各種外部設備和擴展功能。智能風扇主動散熱設計確保系統在高負載運行時的穩定性和可靠性。

總之，阿普奇PLxxxE7S系列Q670平臺工業一體機是一款卓越的工業級計算機，具備出色的性能和多樣化的功能，是工業自動化和邊緣計算領域的理想選擇。

產品介紹

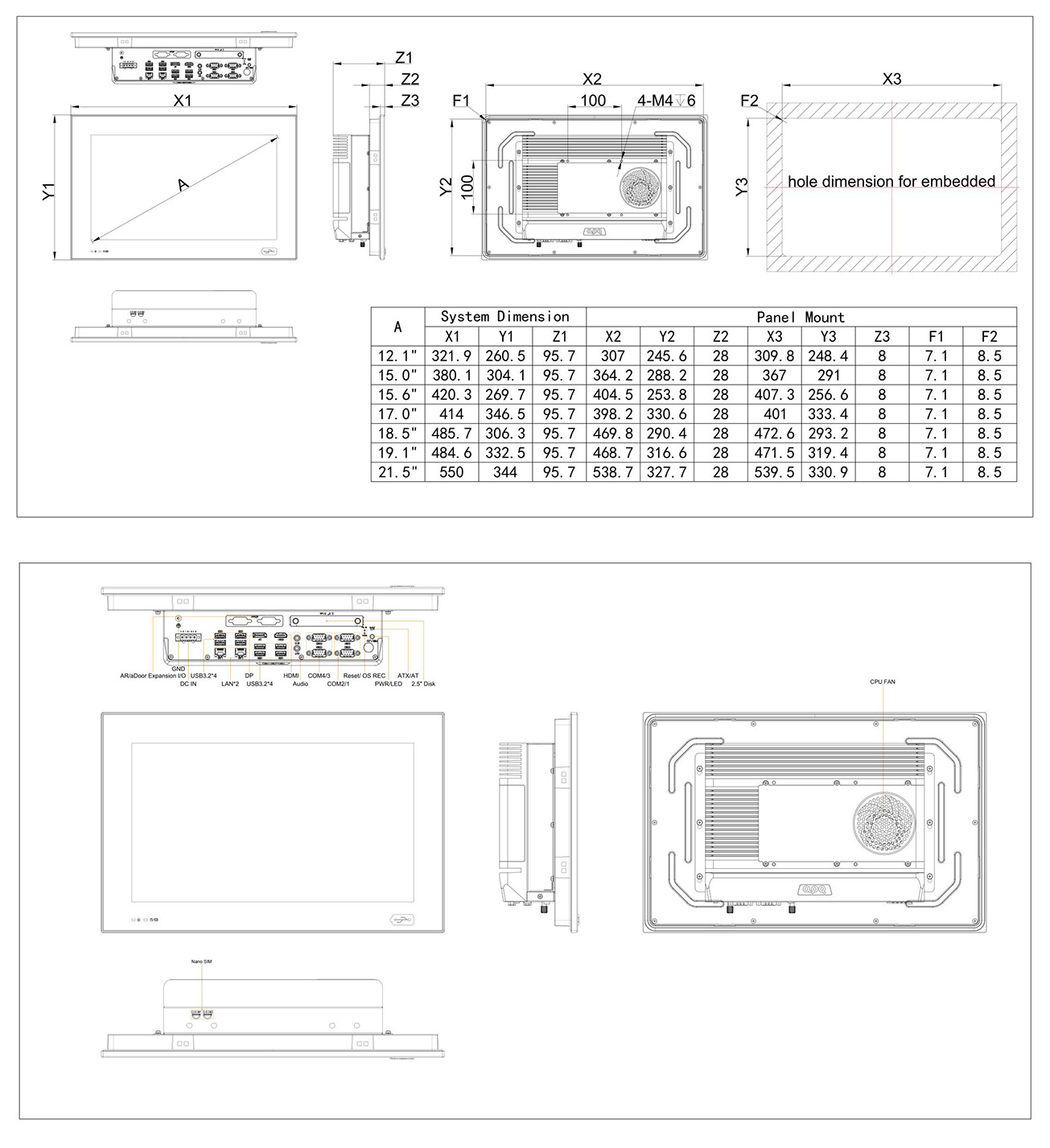

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model		PL121RQ-E7S	PL150RQ-E7S	PL156RQ-E7S	P170RQ-E7S	PL185RQ-E7S	PL191RQ-E7S	PL215RQ-E7S
LCD	Display Size	12.1"	15.0"	15.6"	17.0"	18.5"	19.1"	21.5"
	Display Type	XGA TFT-LCD	XGA TFT-LCD	FHD TFT-LCD	SXGA TFT-LCD	WXGA TFT-LCD	WXGA TFT-LCD	FHD TFT-LCD
	Max.Resolution	1024 x 768	1024 x 768	1920 x 1080	1280 x 1024	1366 x 768	1440 x 900	1920 x 1080
	Luminance	350 cd/m2	300 cd/m2	350 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2
	Aspect Ratio	4:3	4:3	16:9	5:4	16:9	16:10	16:9
	Viewing Angle	80/80/80/80°	88/88/88/88°	89/89/89/89°	85/85/80/80°	89/89/89/89°	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
	Backlight Lifetime	30,000 hr	70,000 hr	50,000 hr	30,000 hr	30,000 hr	30,000 hr	50,000 hr
	Contrast Ratio	800:1	2000:1	800:1	1000:1	1000:1	1000:1	1000:1
Touchscreen	Touch Type	5-wire resistive touch	5-wire resistive touch	5-wire resistive touch	5-wire resistive touch	5-wire resistive touch	5-wire resistive touch	5-wire resistive touch
	Controller	USB signal	USB signal	USB signal	USB signal	USB signal	USB signal	USB signal
	Input	finger/touch pen	finger/touch pen	finger/touch pen	finger/touch pen	finger/touch pen	finger/touch pen	finger/touch pen
	Light Transmission	≥78%	≥78%	≥78%	≥78%	≥78%	≥78%	≥78%
	Hardness	≥3H	≥3H	≥3H	≥3H	≥3H	≥3H	≥3H
Processor System	CPU	Intel? 12/13th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	65W
	Socket	LGA1700
	Chipset	Q670
	BIOS	AMI 256 Mbit SPI
Memory	Socket	2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Memory	Max Capacity	64GB, Single Max. 32GB
Graphics	Controller	Intel? UHD Graphics
Ethernet	Controller	1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45) 1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)
Storage	SATA	1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) Support RAID 0, 1
Storage	M.2	1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots	aDoor	1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
	Mini PCIe	2 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)
	M.2	1 * M.2 Key-E (PCIe x1 Gen 3 + USB 2.0, 2230)
Front I/O	Ethernet	2 * RJ45
	USB	2 * USB3.2 Gen2x1 (Type-A, 10Gbps) 6 * USB3.2 Gen 1x1 (Type-A, 5Gbps)
	Display	1 * HDMI1.4b: max resolution up to 40962160 @ 30Hz 1 DP1.4a: max resolution up to 4096*2160 @ 60Hz
	Audio	2 * 3.5mm Jack (Line-Out + MIC)
	Serial	2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes)
	Button	1 * Power Button + Power LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button
Rear I/O	Antenna	4 * Antenna hole
Rear I/O	SIM	2 * Nano SIM card slots
Internal I/O	USB	6 * USB2.0 (wafer)
	LCD	1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz
	Front Panel	1 * FPanel (PWR+RST+LED, wafer)
	Audio	1 * Audio (Header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
	Serial	2 * RS232 (COM5/6, wafer)
	GPIO	1 * 16 bits DIO (8xDI and 8xDO, wafer)
	LPC	1 * LPC (wafer)
	SATA	3 * SATA 7P Connector, up to 600MB/s
	SATA Power	3 * SATA Power (wafer)
	FAN	1 * CPU FAN (wafer) 2 * SYS FAN (KF2510-4A)
Power Supply	Type	DC, AT/ATX
	Power Input Voltage	9~36VDC, P≤240W 18~60VDC, P≤400W
	Connector	1 * 4Pin Connector, P=5.00/5.08
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	Radiator: Aluminum alloy, Box: SGCC
	Mounting	VESA, Embedded
	Dimensions (L * W * H, Unit: mm)	321.9260.595.7	380.1304.195.7	420.3269.795.7	414346.595.7	485.7306.395.7	484.6332.595.7	55034495.7
	Weight	Net: 6.66Kg Total: 8.16 Kg	Net: 8.05Kg Total: 9.55 Kg	Net: 7.95Kg Total: 9.45 Kg	Net: 8.8Kg Total: 10.6 Kg	Net: 8.65Kg Total: 10.45 Kg	Net: 10.05Kg Total: 11.85 Kg	Net: 9.58Kg Total: 11.38 Kg
Environment	Heat Dissipation System	PWM FAN Cooling
	Operating Temperature	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	0~50℃	0~50℃
	Storage Temperature	-20~60℃	-20~70℃	-30~80℃	-30~70℃	-30~70℃	-20~60℃	-20~60℃
	Relative Humidity	10 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
	Certification	CE/FCC, RoHS
