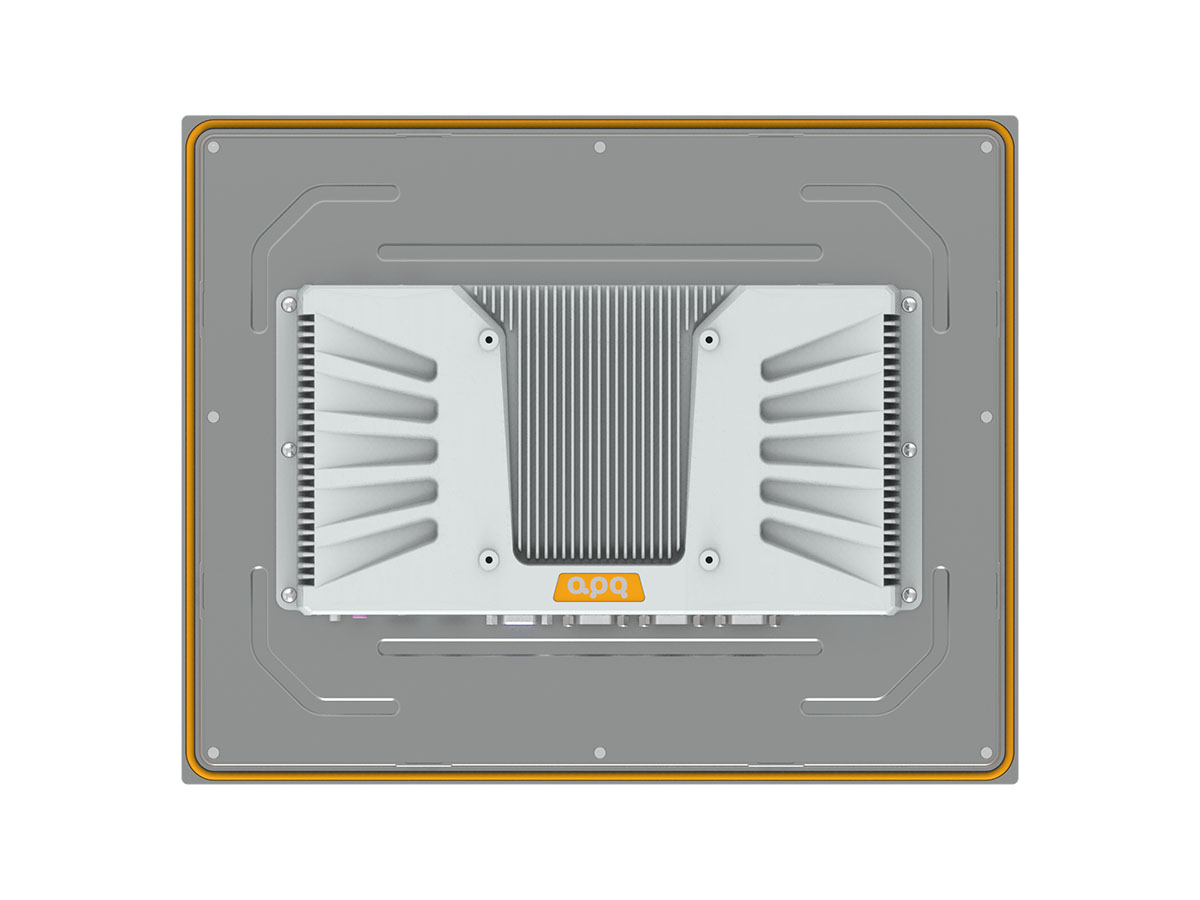

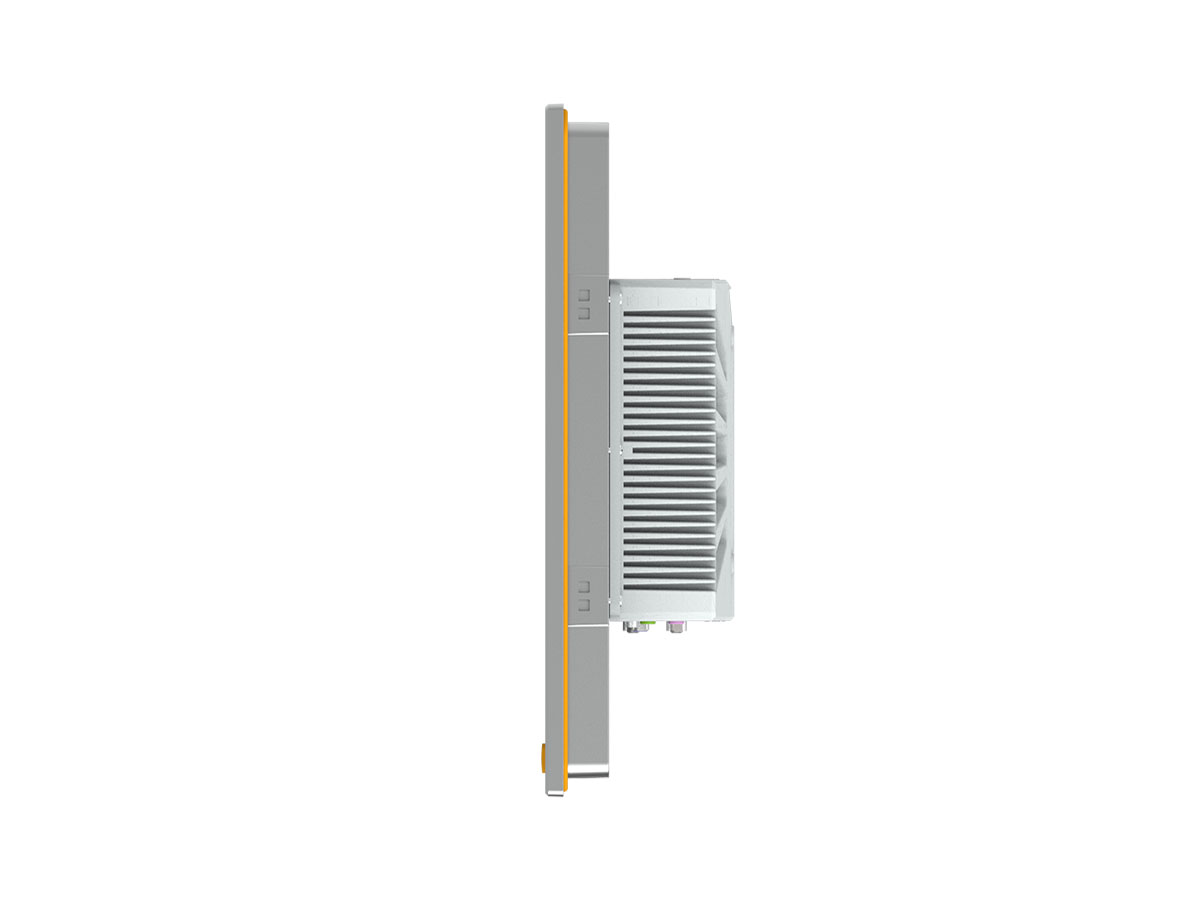

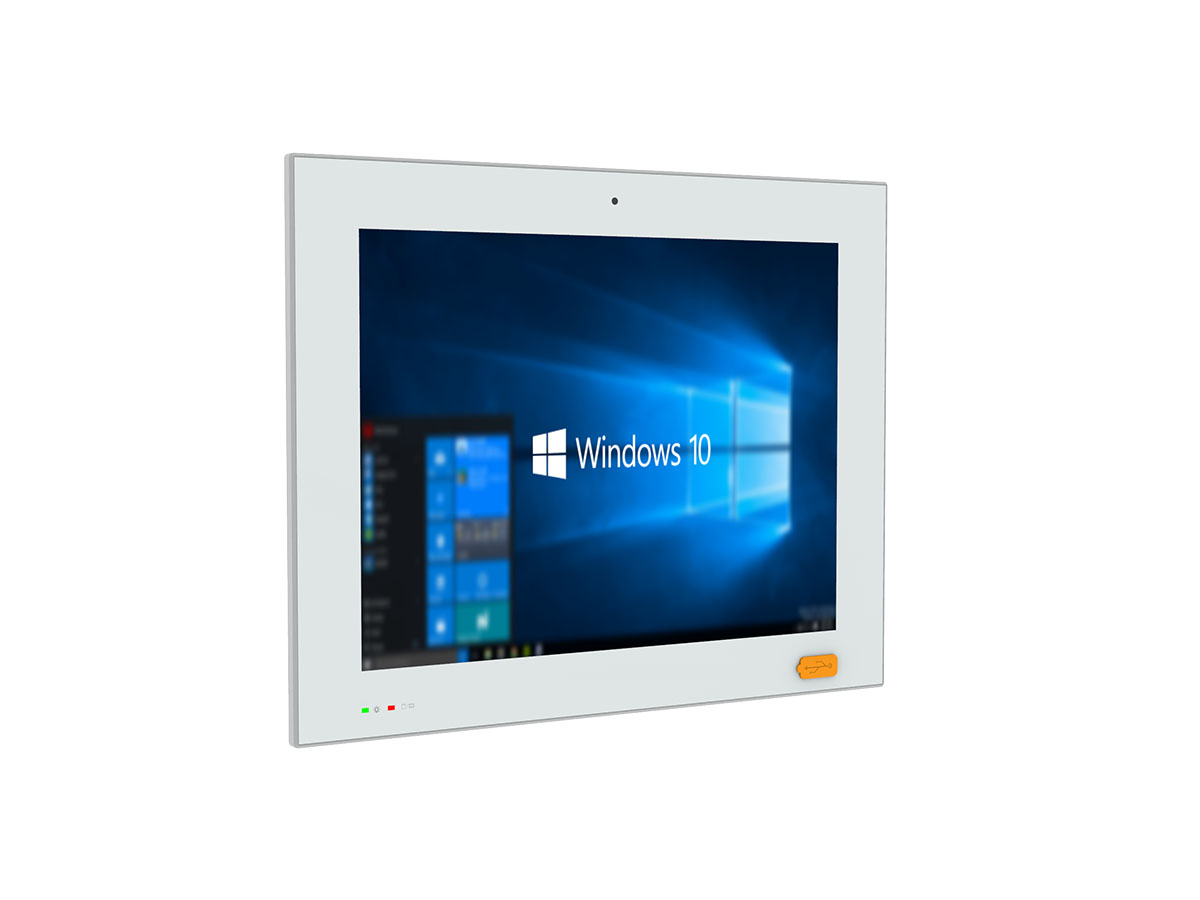

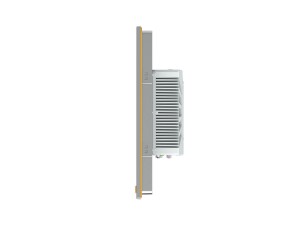

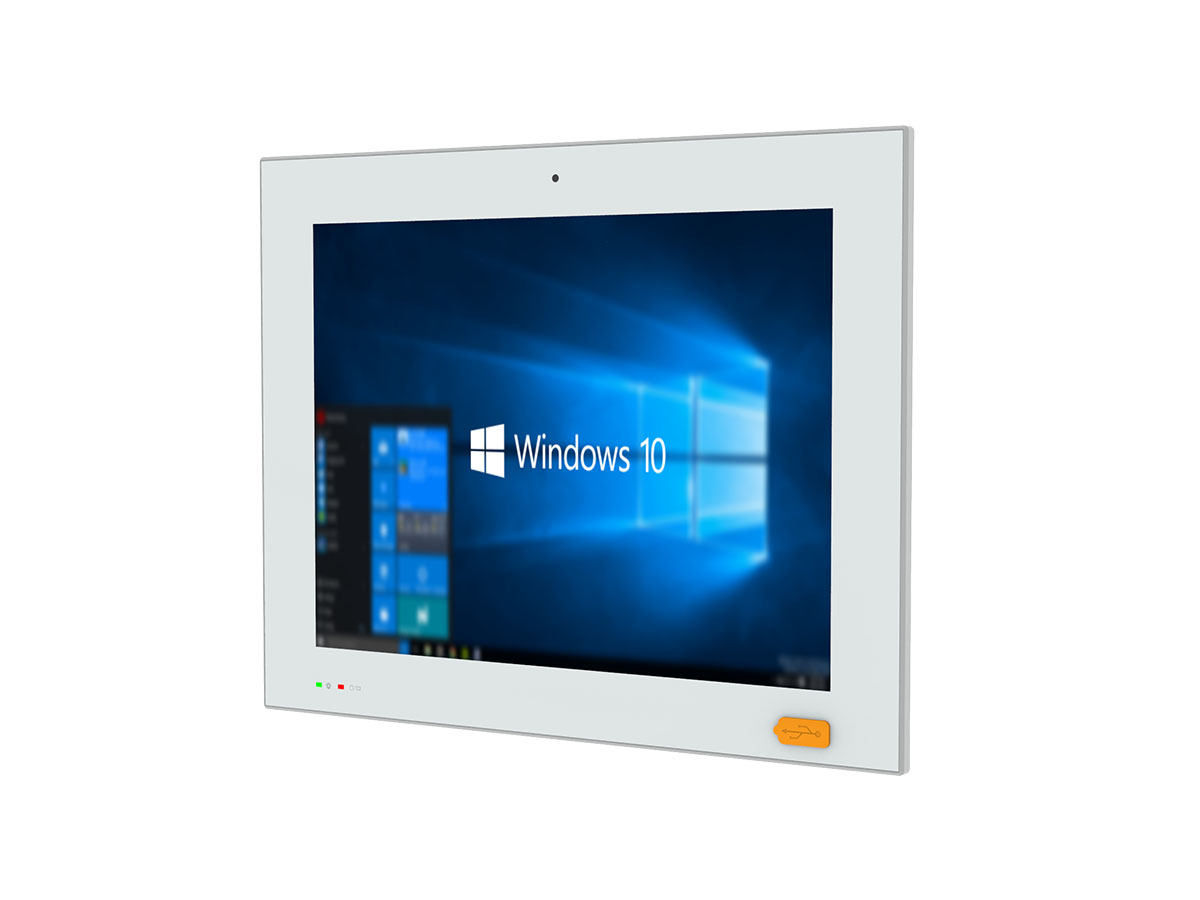

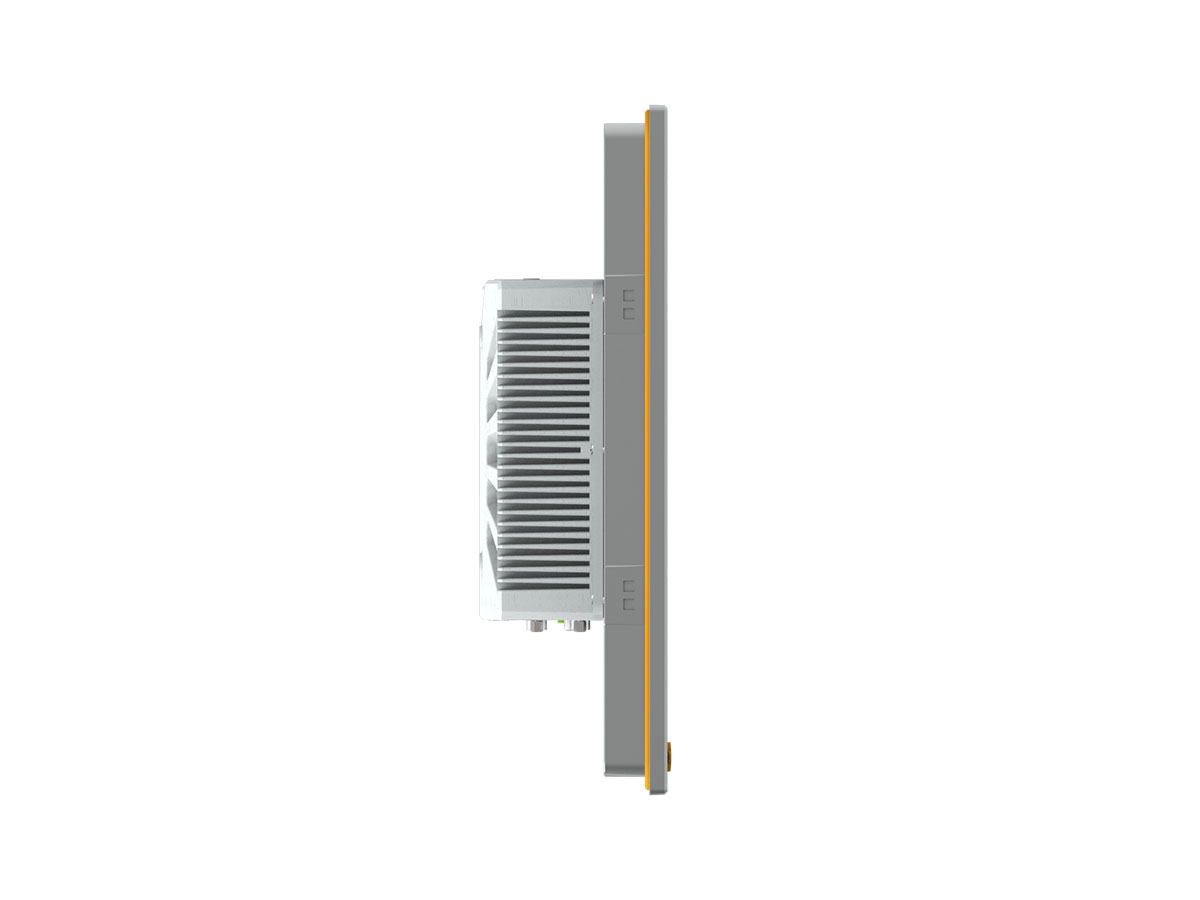

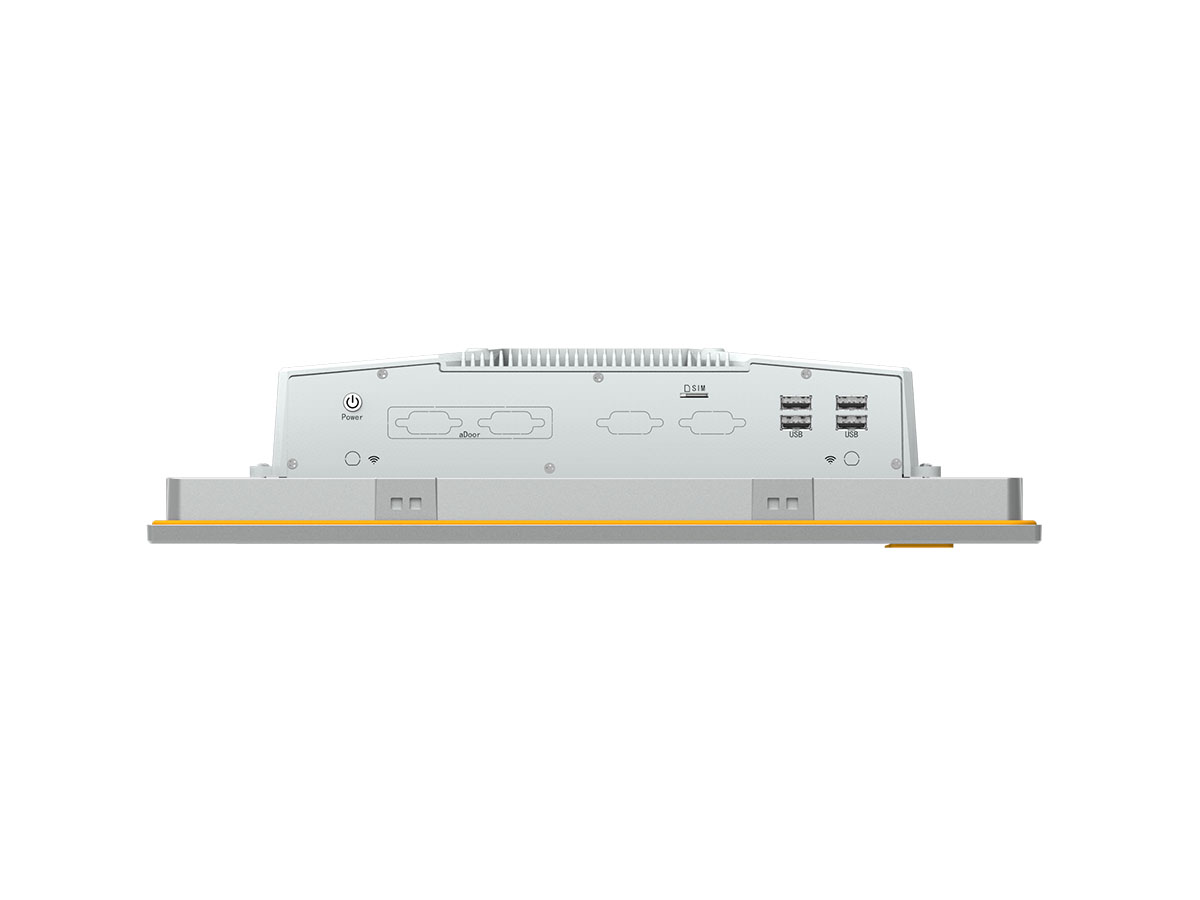

Note: The product image shown above is the PL150CQ-E5M model
PLE5M系列 工業一體機/工業平板電腦 電容觸摸屏
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
產品描述
阿普奇全屏電容觸摸屏工業一體機PLxxxCQ-E5M系列是一款專為工業應用而設計的強大一體機。出色的全屏電容觸摸屏技術，提供流暢、準確的觸控體驗，采用模塊化設計，支持12.1~21.5″的屏幕尺寸，同時支持方屏和寬屏顯示，適應不同行業標準和用戶需求。前面板具備出色的防塵防水性能，滿足IP65要求，能夠適應各種惡劣的工業環境。它采用Intel? Celeron? J1900超低功耗CPU，保證了高效性能，同時降低了能耗。集成了雙Intel?千兆網卡，提供高速穩定的網絡連接和數據傳輸能力。支持雙硬盤存儲，為用戶提供更大的存儲容量，滿足各種數據存儲需求。支持APQ MXM COM/GPIO模塊擴展，可根據具體應用需求進行定制配置，進一步擴展產品的功能和應用范圍。支持WiFi/4G無線擴展，方便遠程管理和數據傳輸，實現靈活的網絡連接。采用無風扇設計，減少維護需求，提高系統可靠性。支持嵌入式和VESA安裝方式，方便集成到各種工業環境中。
綜上所述，阿普奇全屏電容觸摸屏工業一體機PLxxxCQ-E5M系列具備豐富的功能和出色的性能，助力工業自動化的發展。
| Model | PL121CQ-E5M | PL150CQ-E5M | PL156CQ-E5M | PL170CQ-E5M | PL185CQ-E5M | PL191CQ-E5M | PL215CQ-E5M | |
| LCD | Display Size | 12.1" | 15.0" | 15.6" | 17.0" | 18.5" | 19.0" | 21.5" |
| Display Type | XGA TFT-LCD | XGA TFT-LCD | FHD TFT-LCD | SXGA TFT-LCD | WXGA TFT-LCD | WXGA TFT-LCD | FHD TFT-LCD | |
| Max.Resolution | 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1440 x 900 | 1920 x 1080 | |
| Luminance | 350 cd/m2 | 300 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 | |
| Viewing Angle | 80/80/80/80° | 88/88/88/88° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 70,000 hr | 50,000 hr | 30,000 hr | 30,000 hr | 30,000 hr | 50,000 hr | |
| Contrast Ratio | 800:1 | 2000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
| Touchscreen | Touch Type | Projected Capacitive Touch | ||||||
| Controller | USB Signal | |||||||
| Input | Finger/Capacitive Touch Pen | |||||||
| Light Transmission | ≥85% | |||||||
| Hardness | ≥6H | |||||||
| ?Processor System | CPU | Intel??Celeron??J1900 | ||||||
| Base Frequency | 2.00 GHz | |||||||
| Max Turbo Frequency | 2.42 GHz | |||||||
| Cache | 2MB | |||||||
| Total Cores/Threads | 4/4 | |||||||
| TDP | 10W | |||||||
| Chipset | SOC | |||||||
| BIOS | AMI UEFI BIOS | |||||||
| Memory | Socket | 1 * DDR3L-1333MHz SO-DIMM Slot | ||||||
| Max Capacity | 8GB | |||||||
| Graphics | Controller | Intel??HD Graphics | ||||||
| Ethernet | Controller | 2 * Intel??i210-AT (10/100/1000 Mbps, RJ45) | ||||||
| Storage | SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin) | ||||||
| M.2 | 1 * M.2 Key-M Slot (support SATA SSD, 2280) | |||||||
| Expansion Slots | MXM/aDoor | 1 * MXM slot (LPC+GPIO, support COM/GPIO MXM card) | ||||||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe2.0+USB2.0) | |||||||

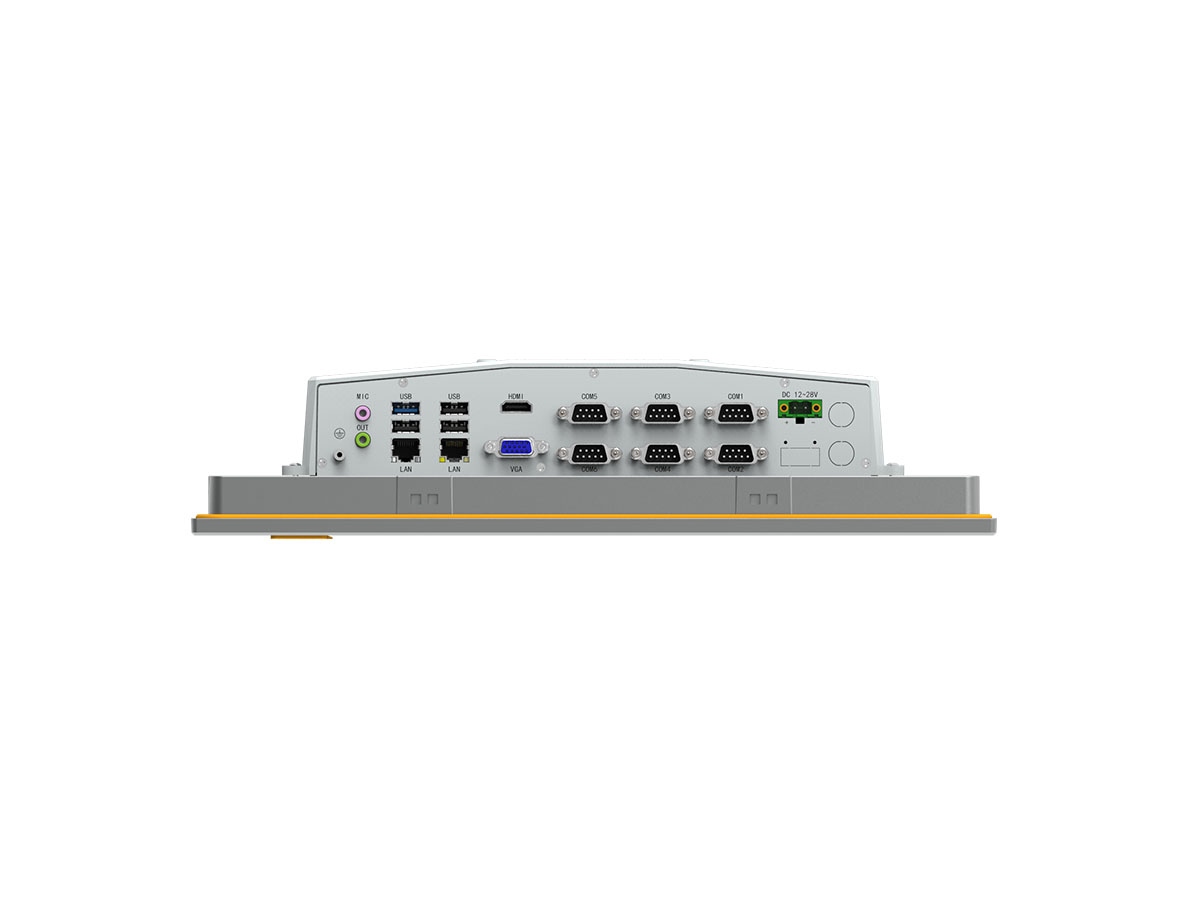

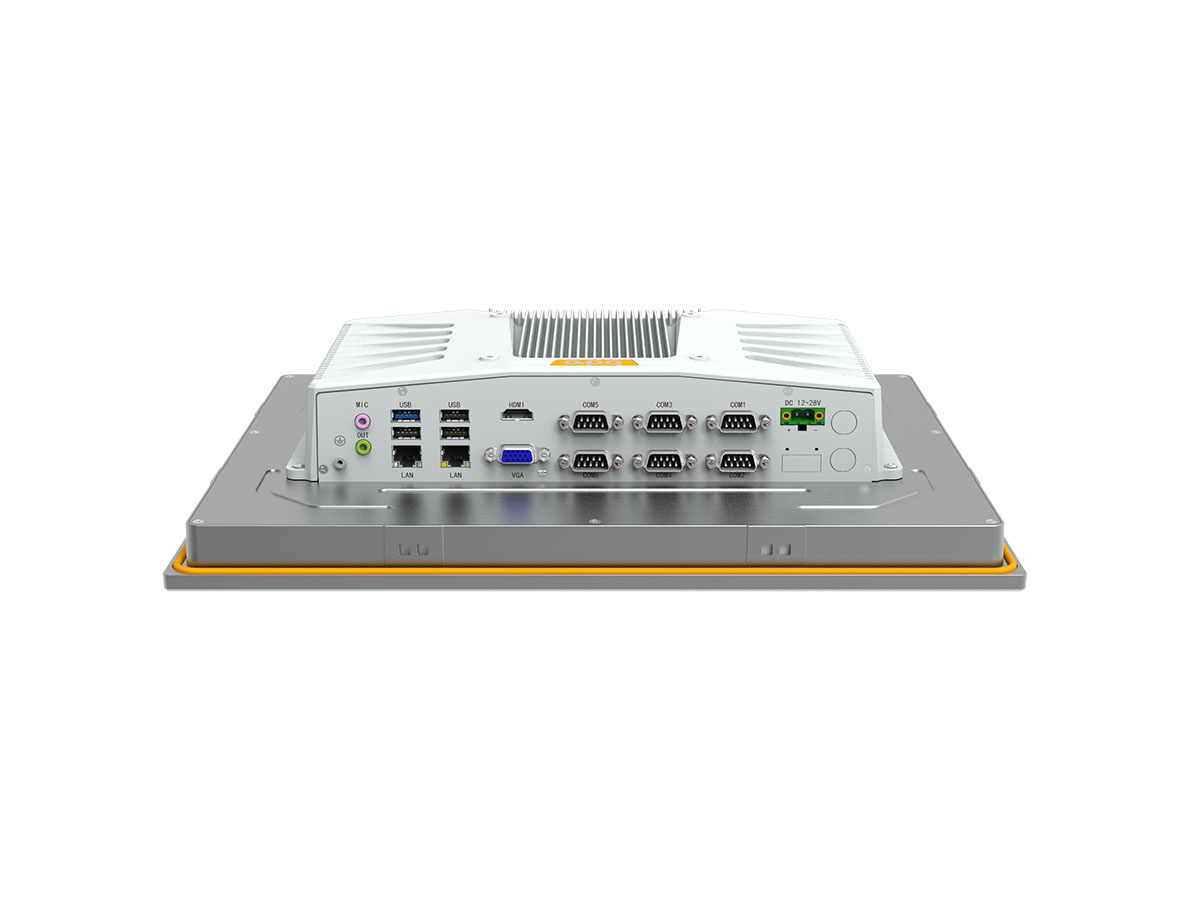

| Front I/O | USB | 1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A) |
||||||
| Ethernet | 2 * RJ45 | |||||||
| Display | 1 * VGA: max resolution up to 1920*1280@60Hz 1 * HDMI: max resolution up to 1920*1280@60Hz |
|||||||
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
|||||||
| Serial | 2 * RS232/485 (COM1/2, DB9/M) 4 * RS232 (COM3/4/5/6, DB9/M) |
|||||||
| Power | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |||||||

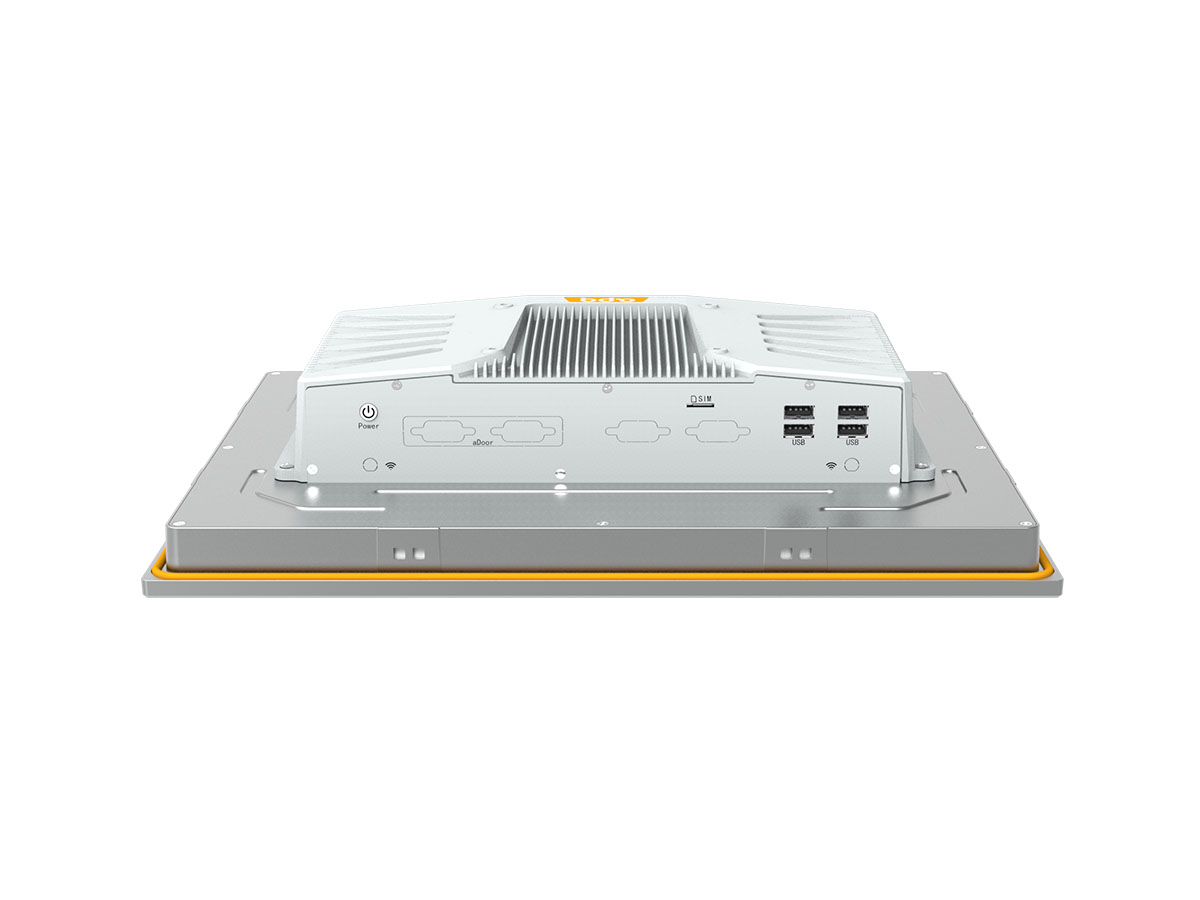

| Rear I/O | USB | 4 * USB2.0 (Type-A) | ||||||
| SIM | 1 * Nano SIM Card slot (Mini PCIe module provides functional support) | |||||||
| Button | 1 * Power Button with LED | |||||||
| Internal I/O | Front Panel | 1 * TFront Panel (3*USB2.0+Front Panel, 10x2Pin, PHD2.0) 1 * Front Panel (3x2Pin, PHD2.0) |
||||||
| FAN | 1 * SYS FAN (4x1Pin, MX1.25) | |||||||
| LPC | 1 * LPC (8x2Pin, PHD2.0) | |||||||
| PS/2 | 1 * PS/2 (PS/2 keyboard + mouse, 6x1Pin, PH2.0) | |||||||
| USB | 2 * USB2.0 (5x2Pin, PH2.0) | |||||||
| Power | 1 * DCIN (power input, 4x1Pin, XH2.54) | |||||||
| Display | 1 * LVDS/eDP (Default LVDS, 20x2Pin, PHD2.0) | |||||||
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0) | |||||||
| Audio | 1 * Front Audio (header, Line-Out + MIC, 5x2Pin 2.54mm) 1 * Speaker (2-W (per channel)/8-Ω?Loads, 4x1Pin, PH2.0) |
|||||||
| Power Supply | Type | DC | ||||||
| Power Input Voltage | 12~28VDC | |||||||
| Connector | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |||||||
| RTC Battery | CR2032 Coin Cell | |||||||
| OS Support | Windows | Windows 7/8.1/10 | ||||||
| Linux | Linux | |||||||
| Watchdog | Output | System Reset | ||||||
| Interval | Programmable 1 ~ 255 sec | |||||||
| Mechanical | Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | ||||||
| Mounting | VESA, embedded | |||||||

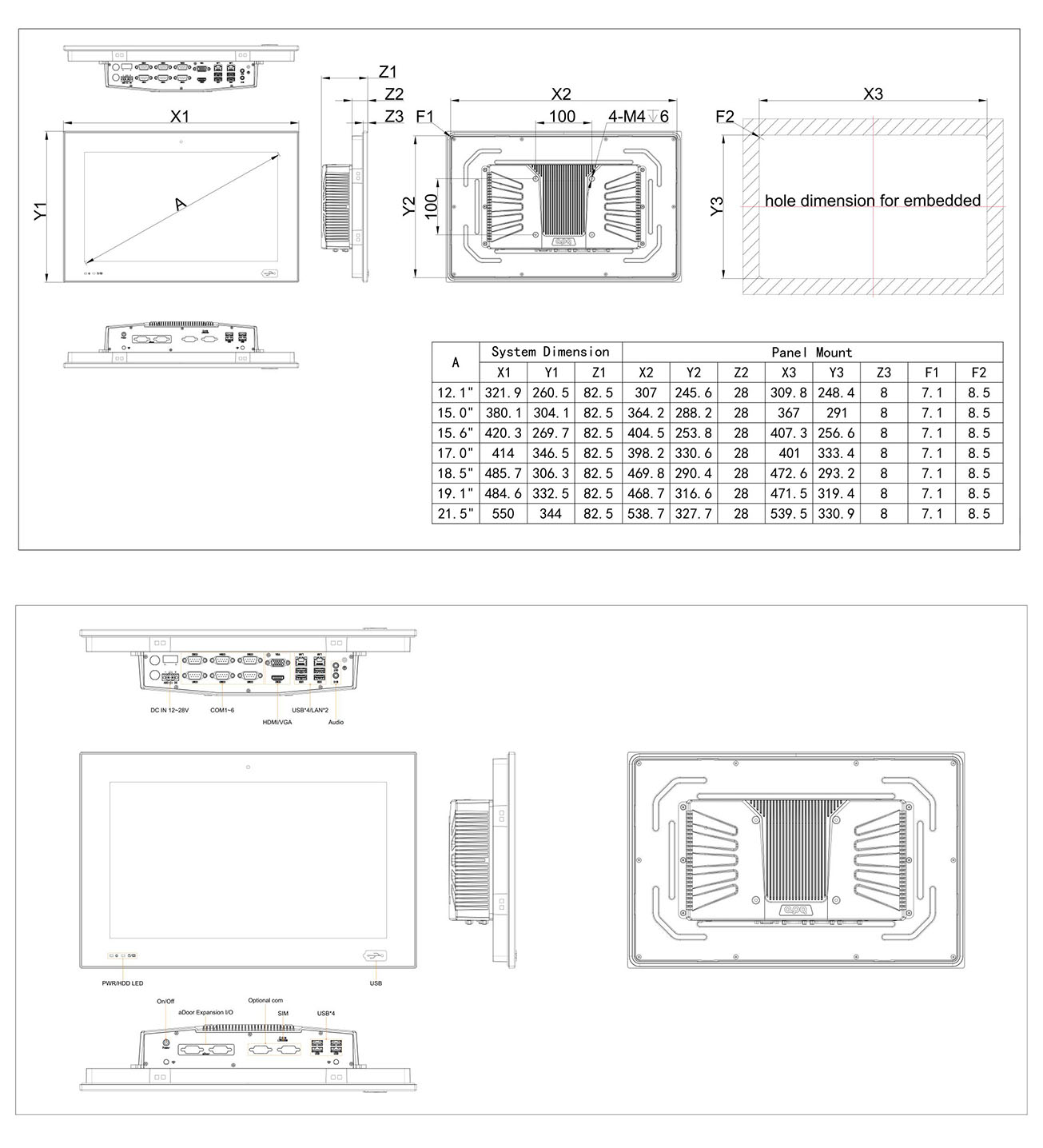

| Dimensions (L*W*H, Unit: mm) |
321.9* 260.5*82.5 | 380.1* 304.1*82.5 | 420.3* 269.7*82.5 | 414* 346.5*82.5 | 485.7* 306.3*82.5 | 484.6* 332.5*82.5 | 550* 344*82.5 | |
| Weight | Net: 3.9Kg, Total: 6.2Kg | Net: 5.3Kg,Total: 7.7Kg | Net: 5.2Kg,Total: 7.6Kg | Net: 6Kg,Total: 8.5Kg | Net: 5.9Kg,Total: 8.5Kg | Net: 6.6Kg,Total: 9.3Kg | Net: 6.8Kg,Total: 9.6Kg | |
| Environment | Heat Dissipation System | Passive heat dissipation | ||||||
| Operating Temperature | -20~60℃ | -20~60℃ | -20~60℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~60℃ | |
| Storage Temperature | -30~80℃ | -30~70℃ | -30~70℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |||||||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | |||||||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | |||||||
-
