產品描述

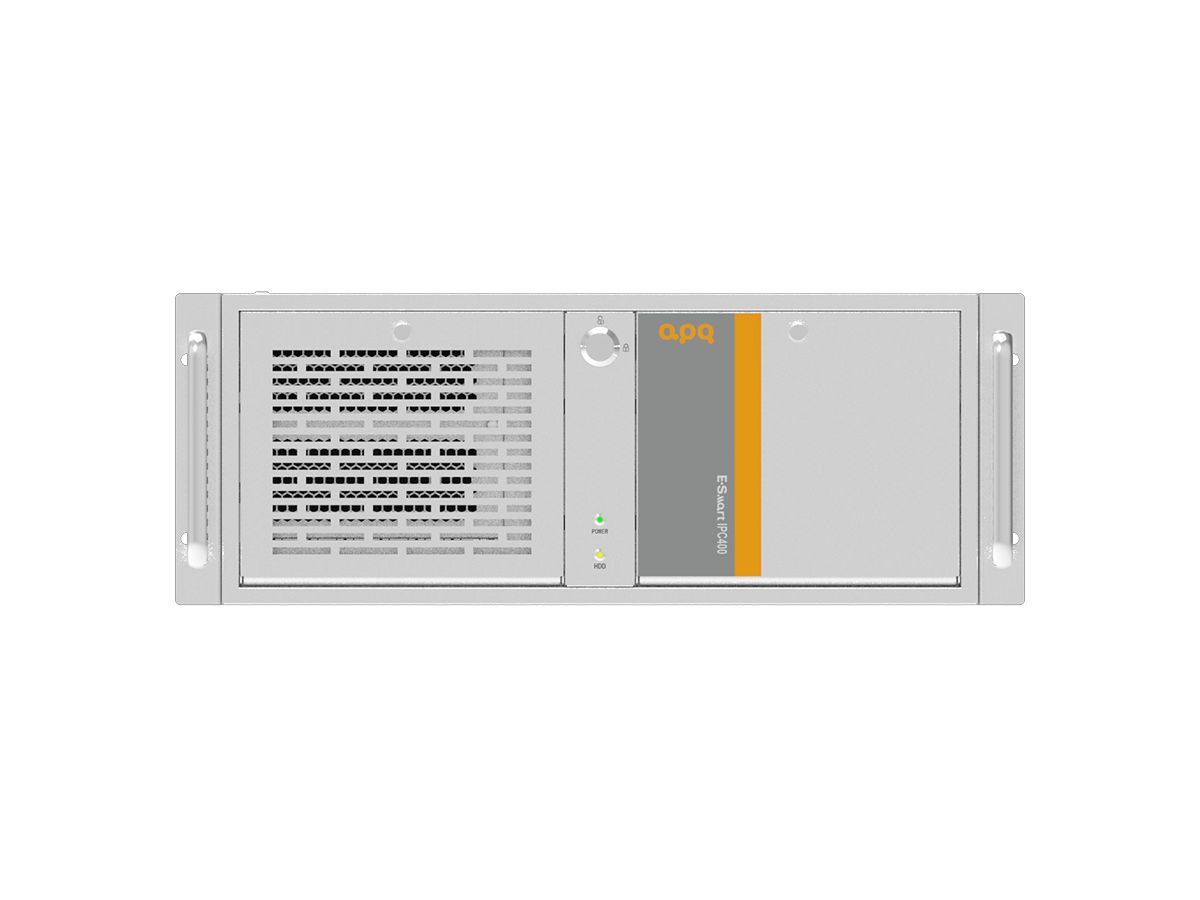

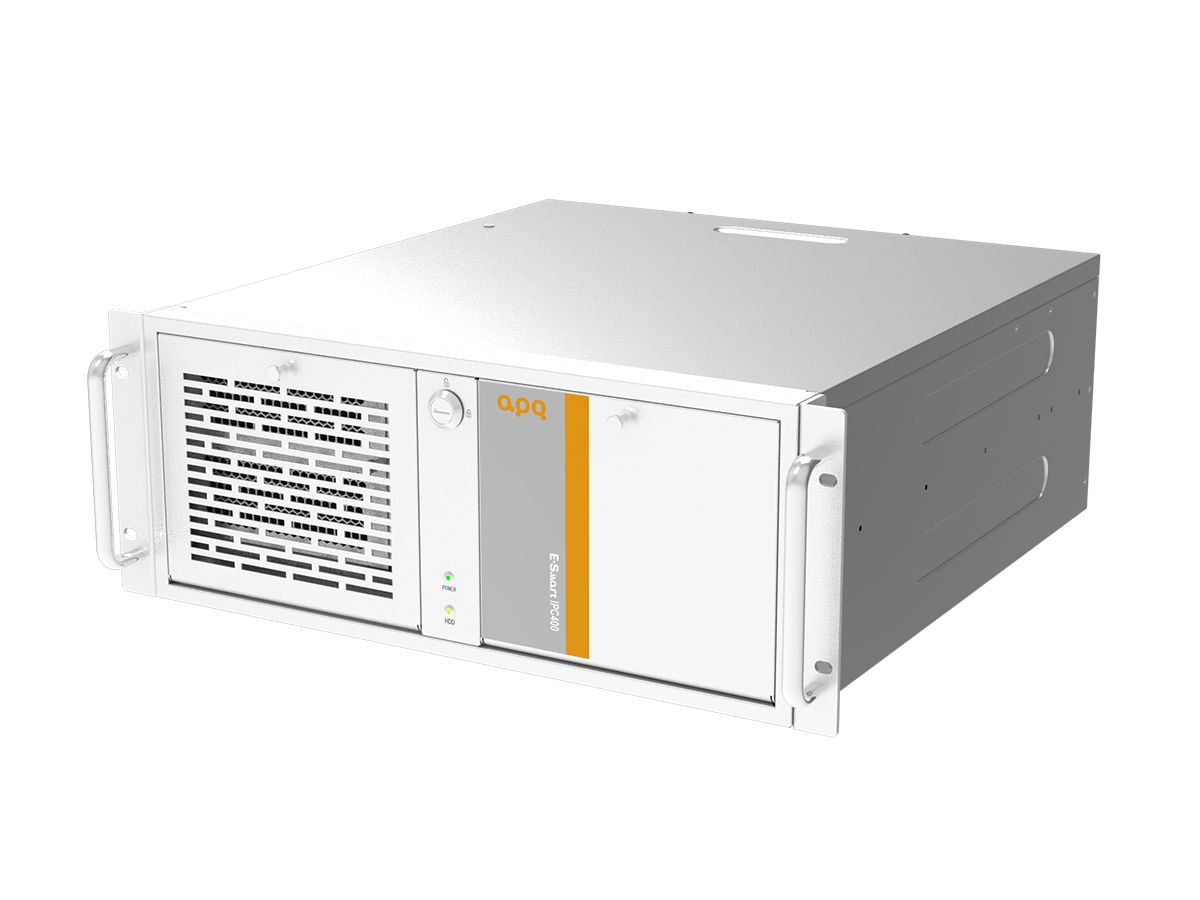

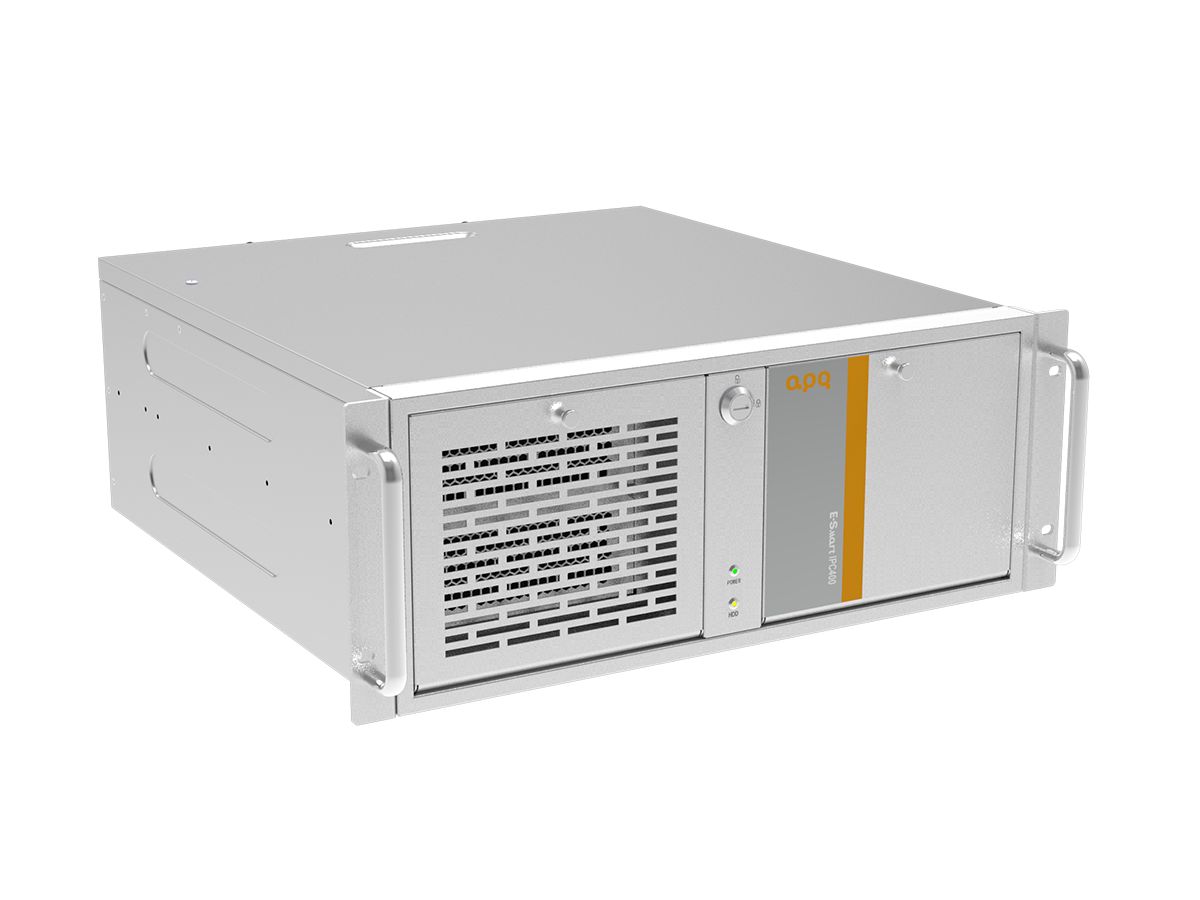

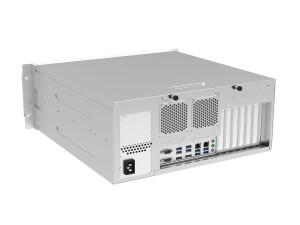

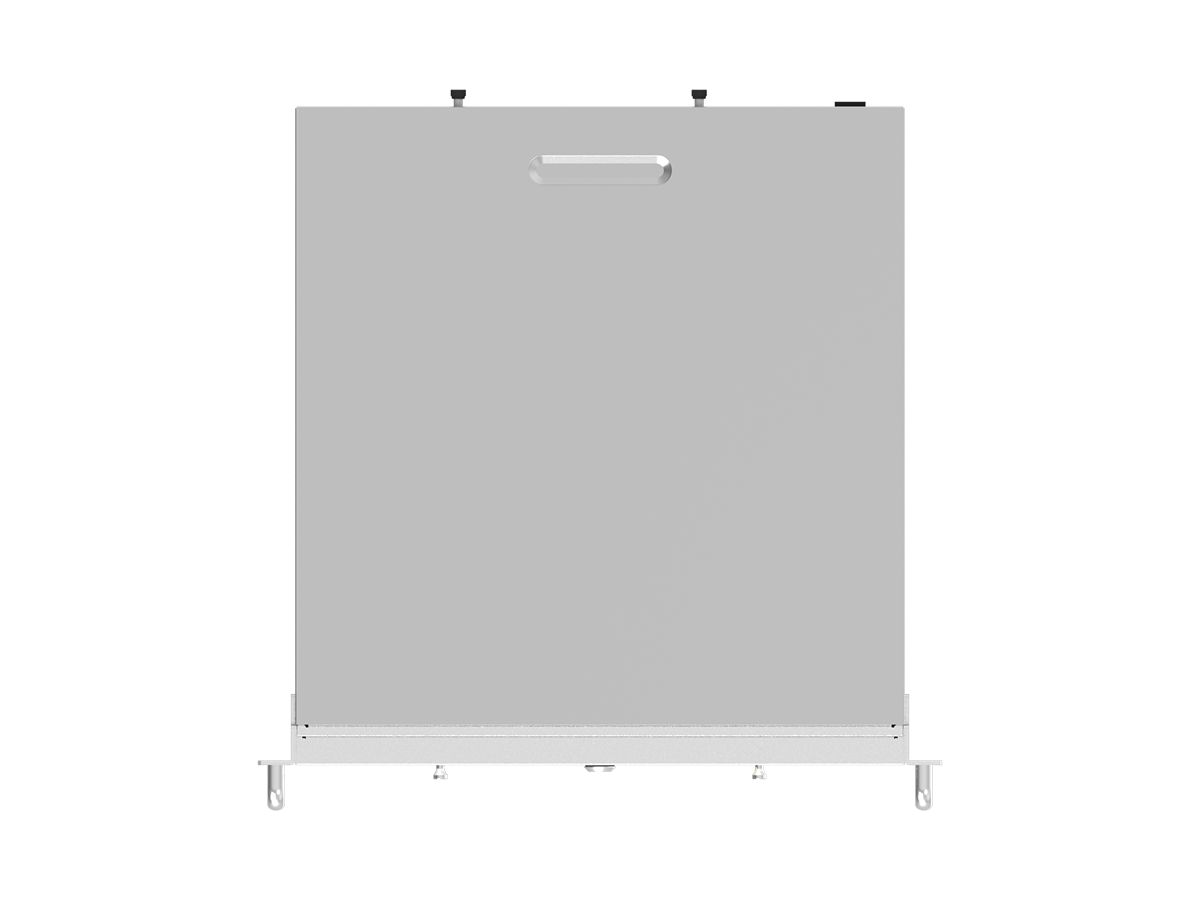

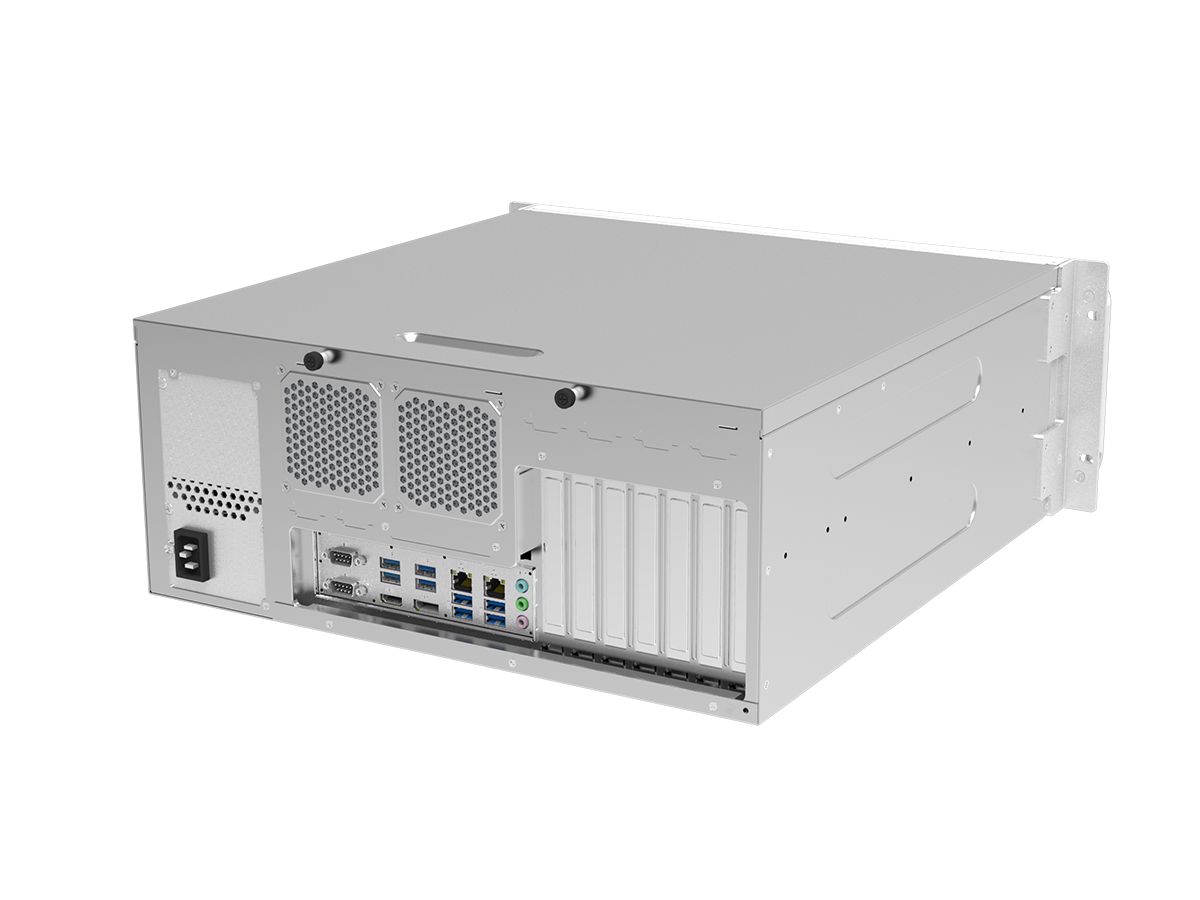

阿普奇?4U機架式工業計算機IPC400-Q670支持英特爾?第12/13代酷睿/賽揚/賽揚臺式機CPU，擁有完整的模具成型，標準19英寸4U機架式機箱。此款產品能夠安裝標準ATX主板和支持標準4U電源，同時支持多達7個插槽的全高度卡擴展，滿足多個行業的應用需求。人性化設計，機箱前部配置系統風扇，無需工具即可進行維護。精心設計的無工具PCIe擴展卡座具有更高的抗震能力?？蛇x高達8個3.5英寸抗震耐沖擊的硬盤倉位，另有可選的2個5.25英寸光驅安裝箱。前面板USB接口、開關設計、電源和存儲狀態顯示，更容易進行系統維護。支持非法拆箱報警，并可鎖定前門以防止未經授權訪問。阿普奇4U機架式工業計算機IPC400-Q670旨在為工業環境提供高性能和可靠性。無論是在制造業、交通運輸、能源、醫療保健，還是其他行業，IPC400-Q670都能滿足復雜的計算和數據處理需求。其堅固的機箱和設計精良的擴展插槽使其能夠在惡劣的工業環境下運行，并且無需頻繁維護。此款產品還特別注重安全性，支持非法拆箱報警并具有前門鎖功能，避免未經授權的訪問，保護重要數據和設備安全。
總之，阿普奇?4U機架式工業計算機IPC400-Q670是一款專為工業領域設計的高性能、可靠、安全的計算機產品，將成為您工業自動化系統的理想選擇。
|
Model |
IPC400-Q670 |
|
|
Processor System |
CPU | Support Intel??12/13th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1700 | |
| Chipset | Q670 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| Capacity | 128GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i225-V/LM 2.5GbE LAN Chip (10/100/1000/2500 Mbps, RJ45)
1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen?4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 2 * PCIe x16 slot (Gen 5, x16 /NA signal or Gen 4, x8 /x8 signal)
1 * PCIe x8 slot (Gen 4, x4 signal) 2 * PCIe x4 slot (Gen 4, x4 signal) 1 * PCIe x4 slot (Gen 3, x4 signal) |
| PCI | 1 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
| M.2 | 1 * M.2 Key-B (USB3.2 Gen 1x1 (co-lay with usb header, default), with 1 * SIM Card, 3042/3052) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 4 * USB3.2 Gen?2x1 (Type-A)
4 * USB3.2 Gen?1x1 (Type-A) |
|
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz 1 * HDMI2.0: max resolution up to 3840*2160 @ 30Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|

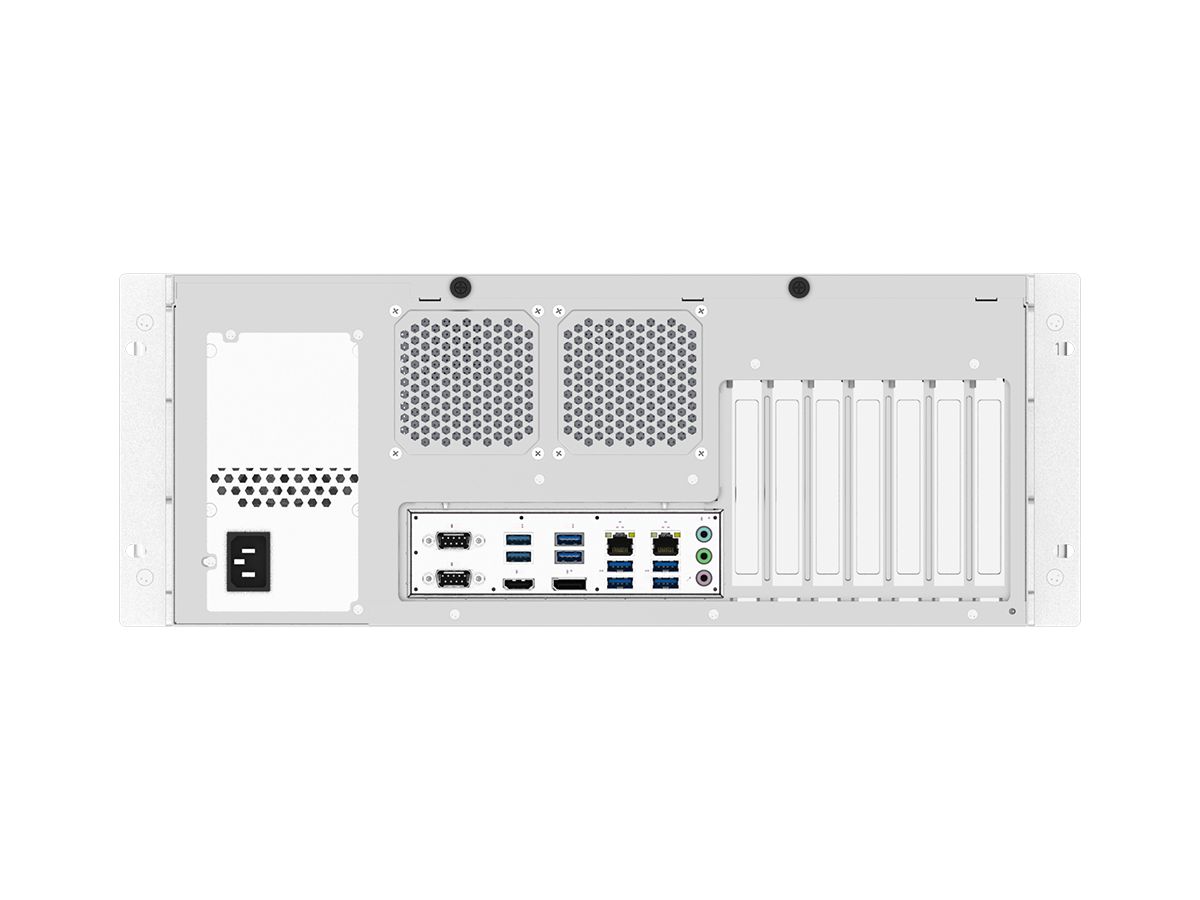

Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED
1 * Hard drive status LED |
|
|
Internal I/O |
USB | 1 * USB3.2 Gen 1x1 (Vertical TYEP-A)
2 * USB2.0 (One of two?shares a signal with the M.2 Key-B, optional, Header) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)
1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) |
|
| Audio | 1 * Front Audio (Line-Out + MIC, Header)
1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) |
|
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 4 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| PS/2 | 1 * PS/2 (wafer) | |
| SMBus | 1 * SMBus (wafer) | |
| FAN | 2 * SYS FAN (Header)
1 * CPU FAN (Header) |
|
|
Power Supply |
Type | ATX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC |
| Dimensions | 482.6mm(L) * 464.5mm(W) * 177mm(H) | |
| Mounting | Shelf mounted installation | |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
