產品描述

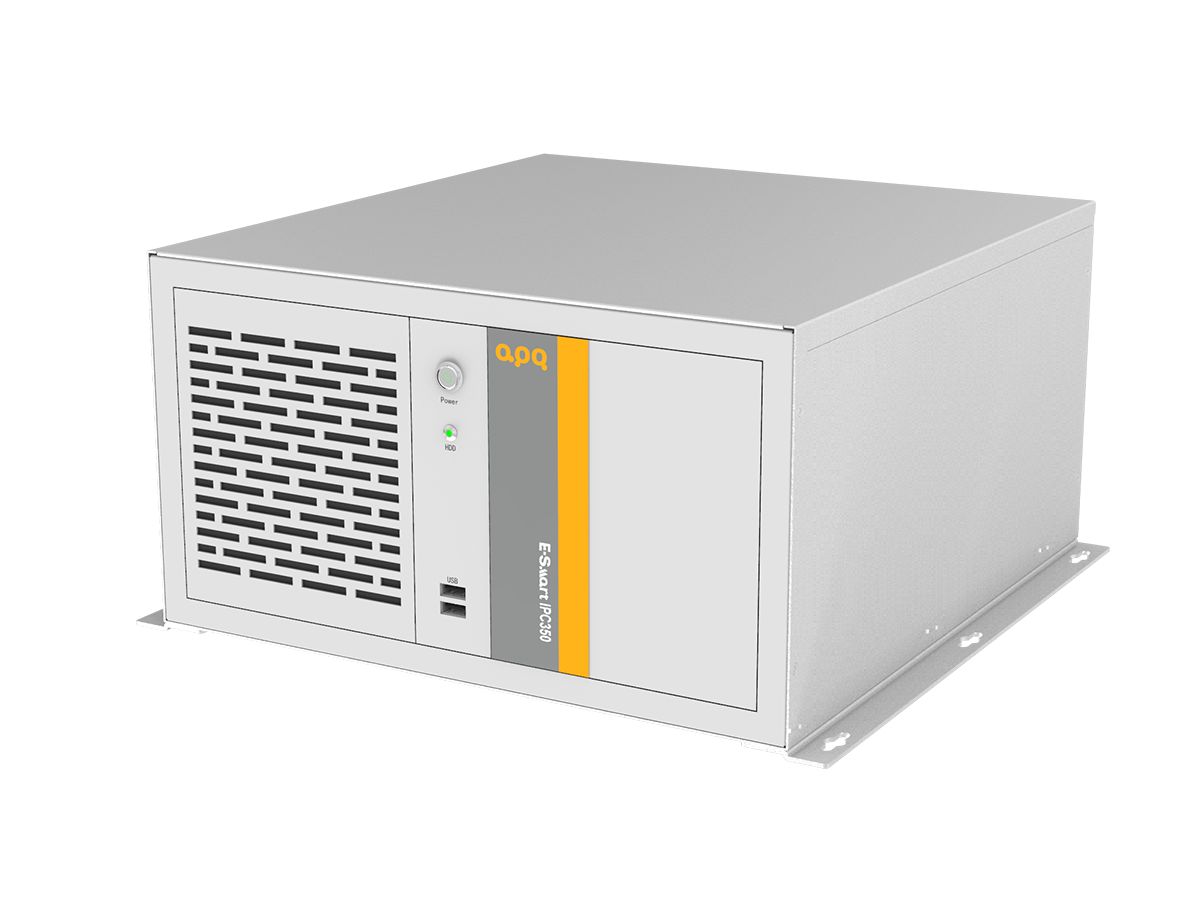

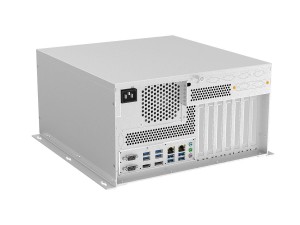

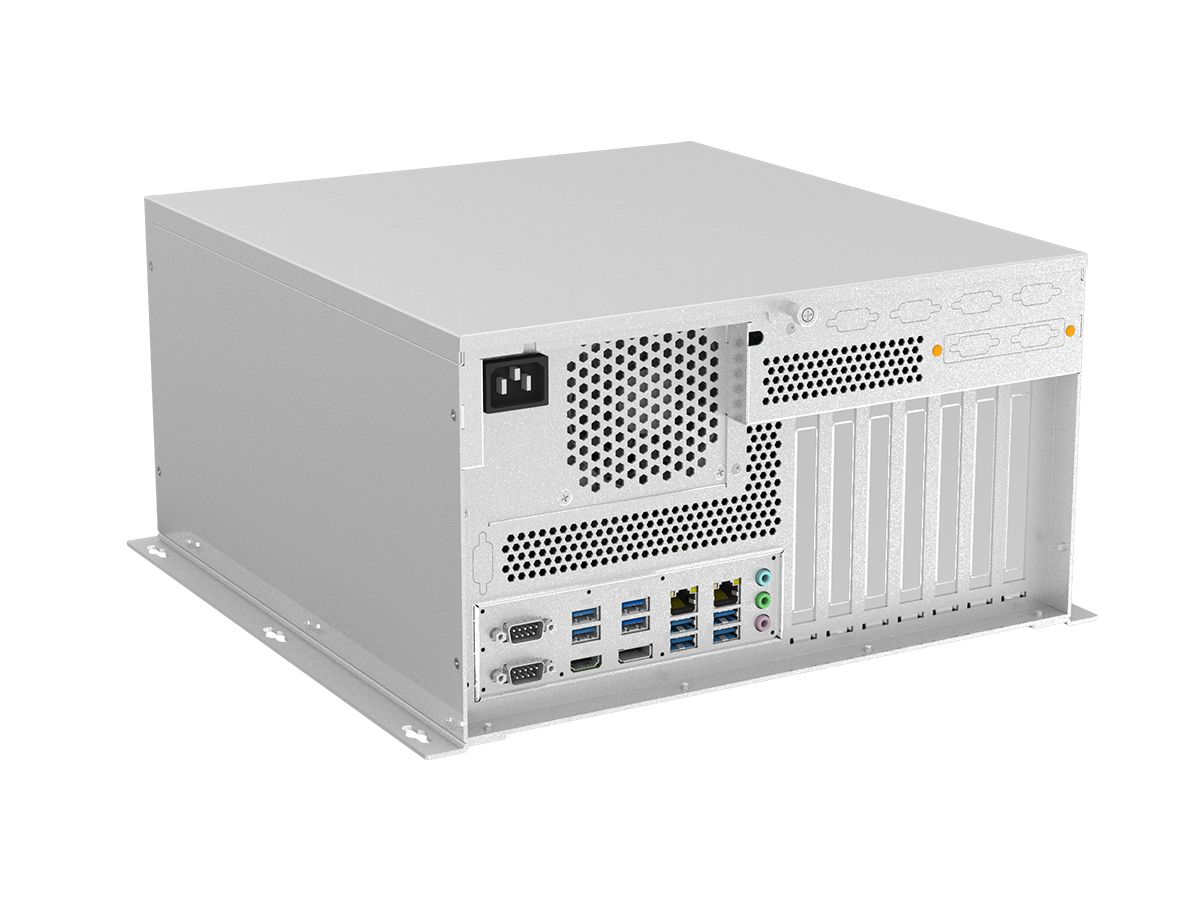

阿普奇壁掛式工控機IPC350-Q470是專為工業應用打造的緊湊型小4U機箱，集成了卓越的性能和多樣化的功能特點。它支持最新的Intel? 10/11th Generation Core/Pentium/Celeron Desktop CPU，具備強大的數據處理能力。這款工控機安裝標準ATX主板，并支持標準4U電源，確保系統穩定運行。此外，IPC350-Q470最多支持7槽位全高卡擴展，滿足多行業應用需求。其人性化的設計包括機箱前置系統風扇免工具維護和精心設計的免工具PCIe擴展卡固定架，具有更高的抗震性。同時，它最多可選2個3.5英寸抗震抗沖擊硬盤位，提供便捷的系統維護?？傊?，阿普奇壁掛式工控機IPC350-Q470適用于各種工業環境下的邊緣計算應用，具有緊湊型小4U機箱、強大的計算能力、出色的擴展性、人性化的維護設計和卓越的安全性能等特點。無論是在數據處理、圖像識別還是自動化控制方面，這款工控機都能滿足各種邊緣計算應用的需求，為企業創造更多價值。
|
Model |
IPC350-Q470 |
|
|
Processor System |
CPU | Support Intel??10/11th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1200 | |
| Chipset | Q470 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz |
| Capacity | 128GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)
1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen?3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 2 * PCIe x16 slot (Gen 3, x16 /NA signal or Gen 3, x8 /x8 signal)
3 * PCIe x4 slot (Gen 3, x4 signal) |
| PCI | 2 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB3.2 Gen?2x1 (Type-A)
4 * USB3.2 Gen?1x1 (Type-A) 2 * USB2.0 (Type-A) |
|
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz 1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|
Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED
1 * Hard drive status LED |
|
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A)
2 * USB2.0 (Header) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)
1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) |
|
| Audio | 1 * Front Audio (Line-Out + MIC, Header)
1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) |
|
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 4 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| PS/2 | 1 * PS/2 (wafer) | |
| SMBus | 1 * SMBus (wafer) | |
| FAN | 2 * SYS FAN (Header)
1 * CPU FAN (Header) |
|
|
Power Supply |
Type | ATX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC |
| Dimensions | 330mm(L) * 350mm(W) * 180mm(H) | |
| Mounting | Wall mounted, Desktop | |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 90% RH (non-condensing) | |
-
