產品描述

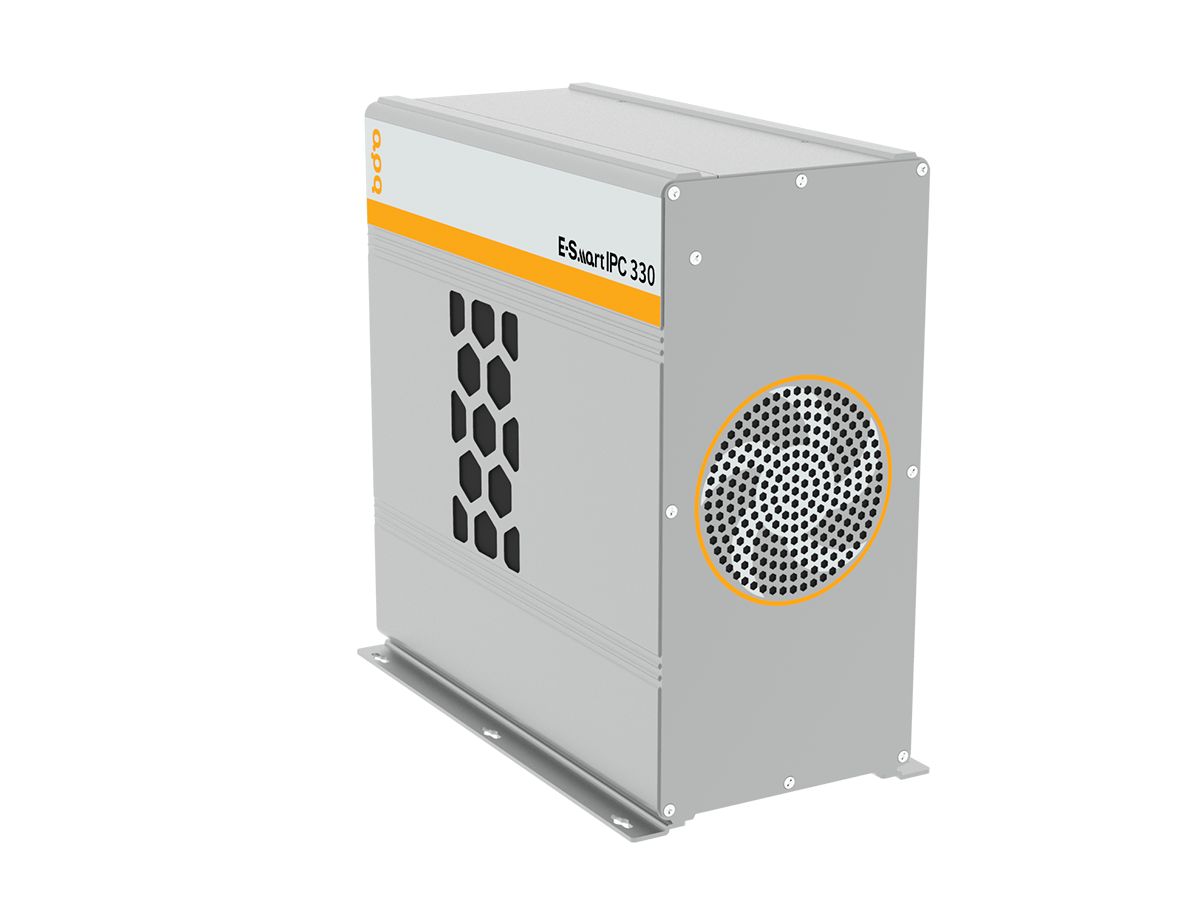

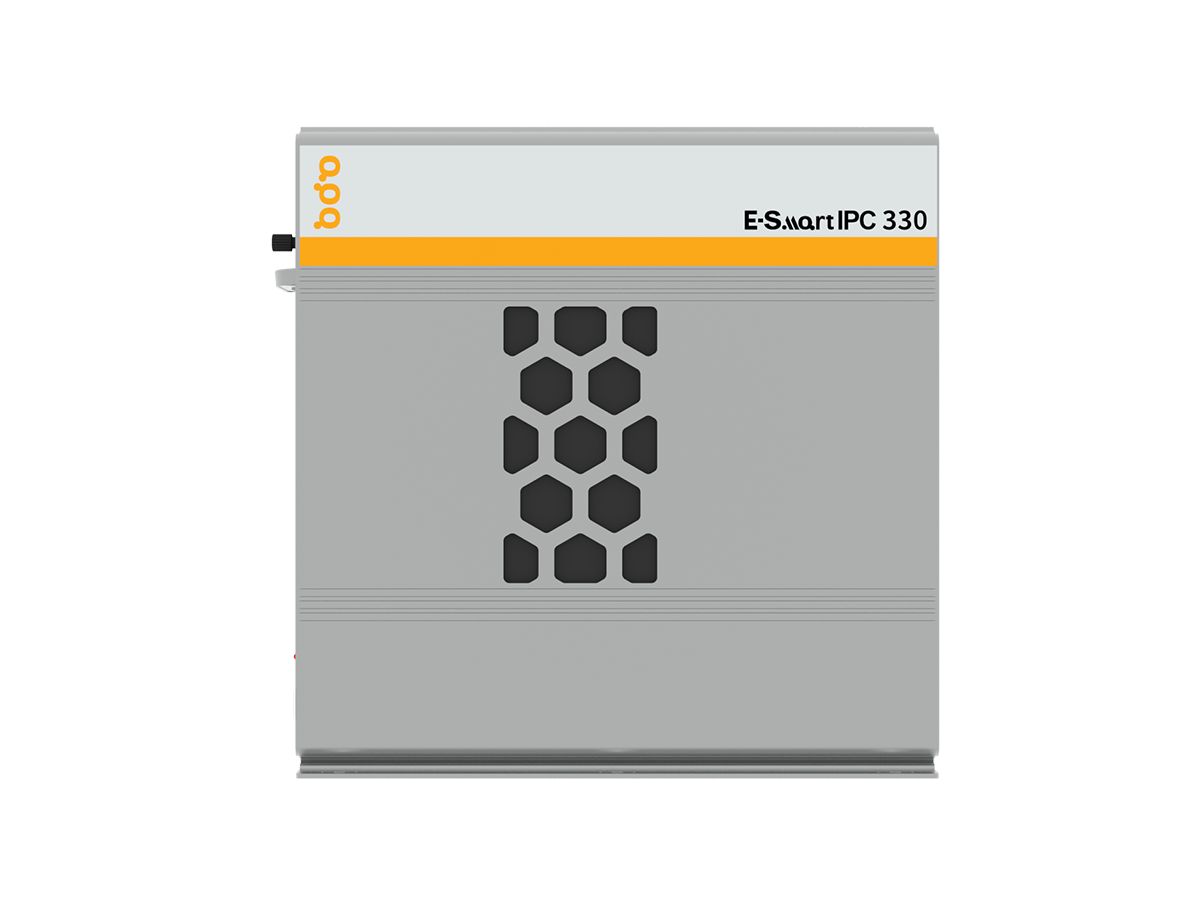

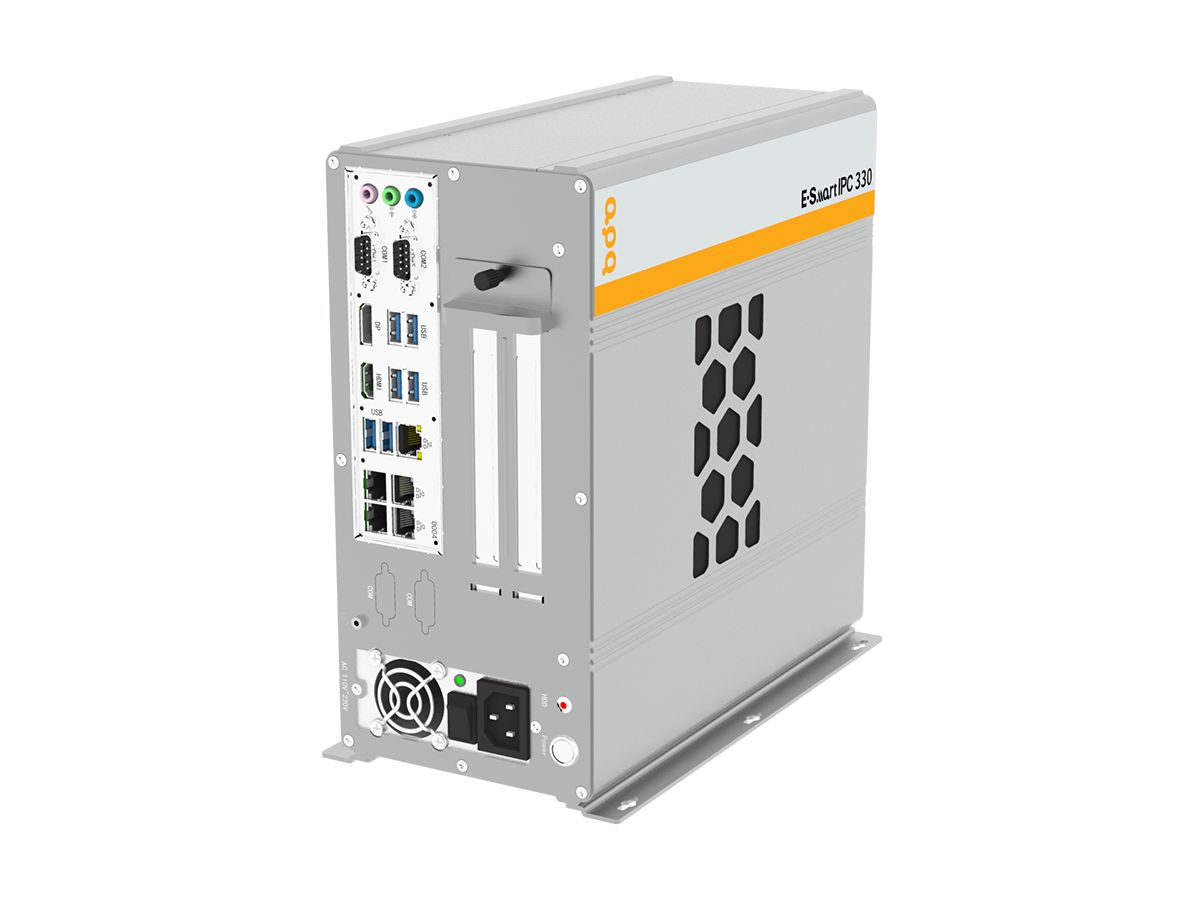

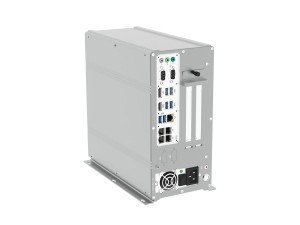

阿普奇壁掛式工控機IPC330D-H81L5是一款專為工業環境設計的高性能計算機。它采用鋁合金模具成型，具有穩定的性能和耐用的外殼，非常適合工業領域的應用。該工控機支持英特爾?第四/五代酷睿/賽揚/賽揚臺式機CPU，能夠滿足多種工業計算需求。同時，它還支持標準ITX主板和標準1U電源供應，能夠提供可靠的電源支持。IPC330D-H81L5還具有可選的適配器卡，可支持2個PCI或1個PCIe X16擴展，滿足不同的擴展需求。默認的1個2.5英寸7mm防震硬盤槽設計，能夠保護硬盤安全運行。前面板開關設計、電源和存儲狀態顯示，使系統維護更加簡便。另外，該款工控機還支持多方位的壁掛和臺式安裝，滿足不同安裝需求。
總之，阿普奇壁掛式工業計算機IPC330D-H81L5具有穩定的性能，豐富的擴展性以及靈活的安裝方式，非常適用于工業控制、自動化設備、智能制造等領域。歡迎了解更多詳情或者咨詢我們的產品顧問。
|
Model |
IPC330D-H81L5 |
|
|
Processor System |
CPU | ?Support Intel? 4/5th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | ?95W | |
| Socket | ?LGA1150 | |
| Chipset | ?H81 | |
| BIOS | ?AMI 256 Mbit SPI | |
|
Memory |
Socket | ?2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz |
| Capacity | ?16GB, Single Max. 8GB | |
|
Graphics |
Controller | ?Intel? HD Graphics |
|
Ethernet |
Controller | ?4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket) ?1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
SATA | ?1 * SATA3.0 7P Connector, up to 600MB/s ?1 * SATA2.0 7P Connector, up to 300MB/s |
| mSATA | ?1 * mSATA (SATA3.0, Share slot with Mini PCIe, default) | |
|
Expansion Slots |
PCIe | ?1 * PCIe x16 slot (Gen 2, x16 signal) |
| Mini PCIe | ?1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with mSATA, Opt.) | |
|

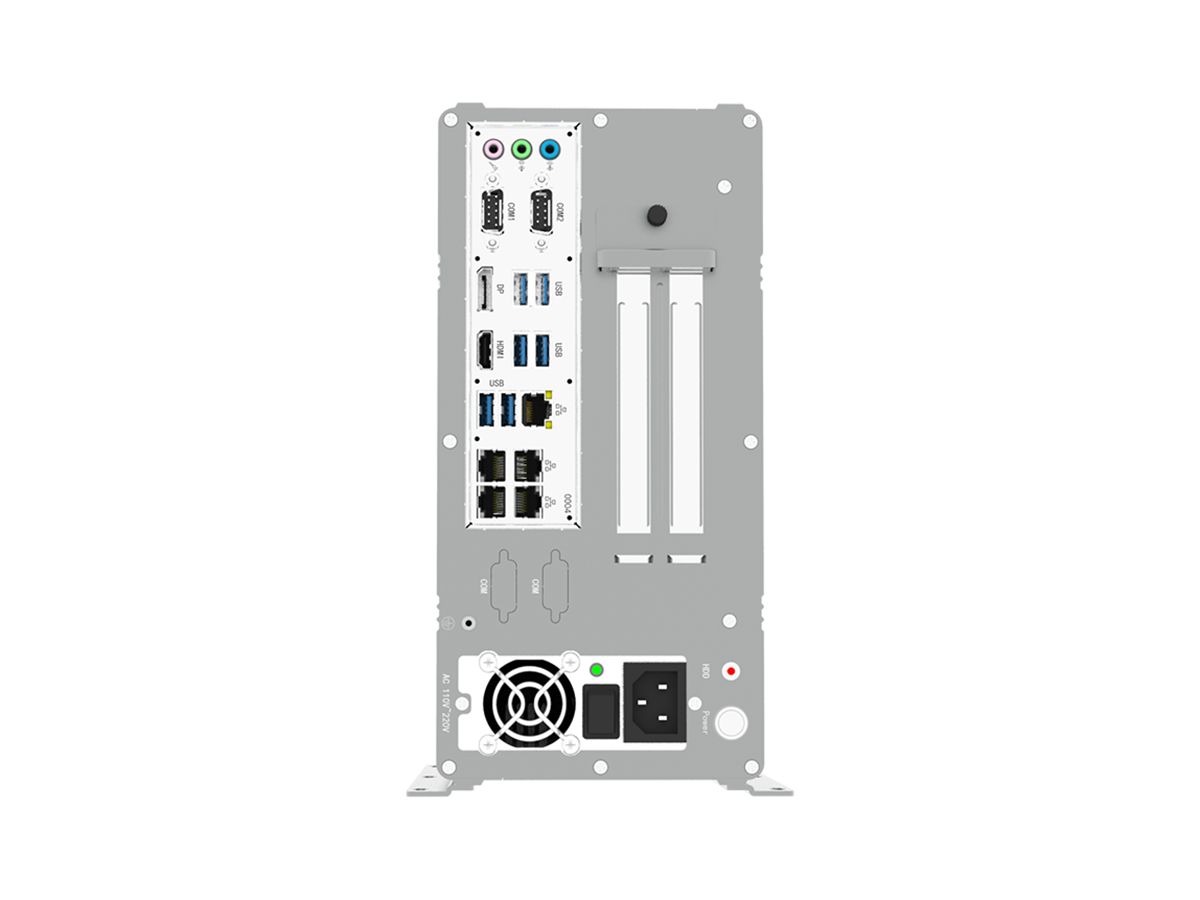

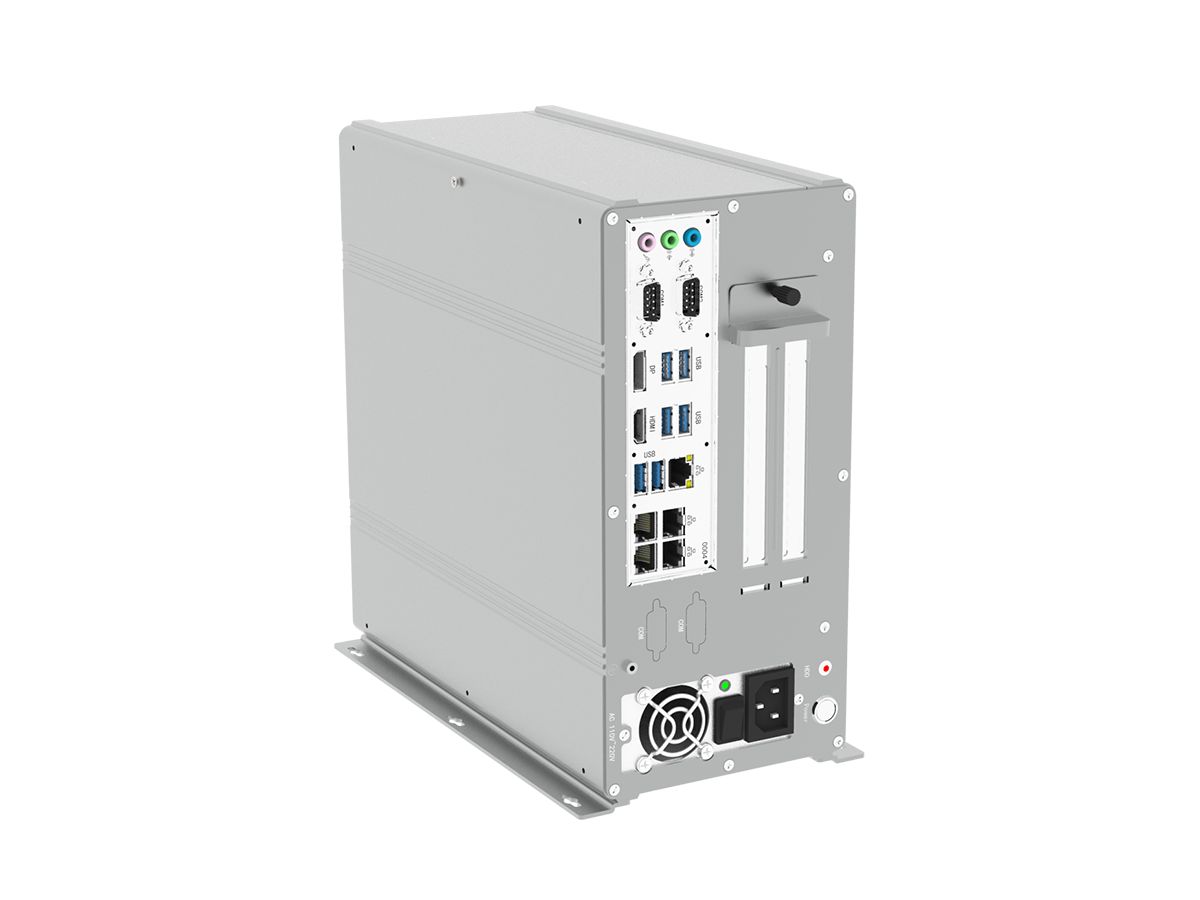

Front I/O |
Ethernet | ?5 * RJ45 |
| USB | ?2 * USB3.0 (Type-A, 5Gbps, Each group of two ports Max. 3A, one port Max. 2.5A) ?4 * USB2.0 (Type-A, Each group of two ports Max. 3A, one port Max. 2.5A) |
|
| Display | ?1 * DP: max resolution up to 3840*2160 @ 60Hz ?1 * HDMI1.4: max resolution up to 2560*1440 @ 60Hz |
|
| Audio | ?3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | ?2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Button | ?1 * Power Button | |
| LED | ?1 * Power status LED ?1 * Hard drive status LED |
|
|
Internal I/O |
USB | ?2 * USB2.0 (Header) |
| COM | ?4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | ?1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Serial | ?4 * RS232 (COM3/4/5/6, Header) | |
| GPIO | ?1 * 8 bits DIO (4xDI and 4xDO, wafer) | |
| SATA | ?1 * SATA3.0 7P Connector ?1 * SATA2.0 7P Connector |
|
| FAN | ?1 * CPU FAN (Header) ?1 * SYS FAN (Header) |
|
| Front Panel | ?1 * Front Panel (Header) | |
|
Power Supply |
Type | ?1U FLEX |
| Power Input Voltage | ?AC power supply, voltage and frequency shall be based on the 1U FLEX power supply provided | |
| RTC Battery | ?CR2032 Coin Cell | |
|
OS Support |
Windows | ?Windows 7/10/11 |
| Linux | ?Linux | |
|
Watchdog |
Output | ?System Reset |
| Interval | ?Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | ?SGCC+AI6061 |
| Dimensions | ?266mm * 127mm * 268mm | |

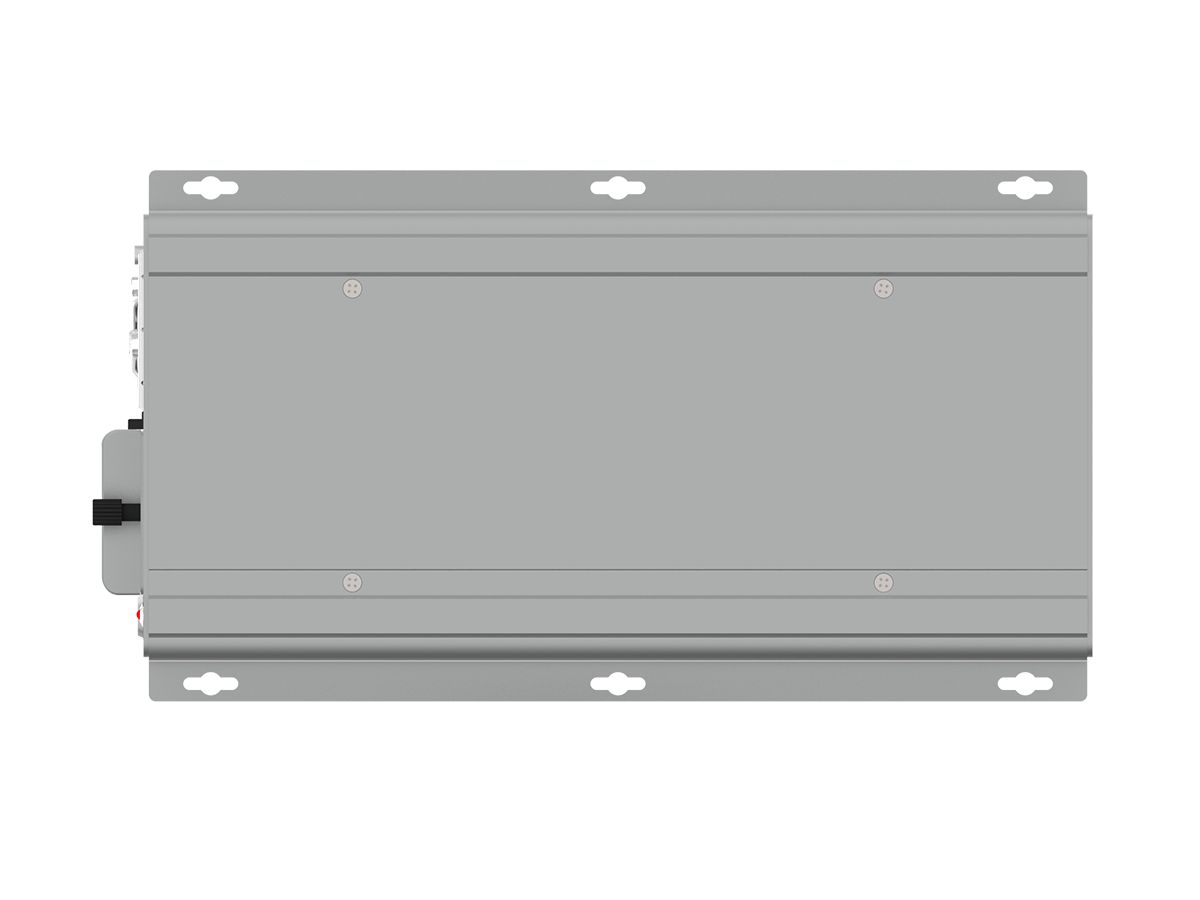

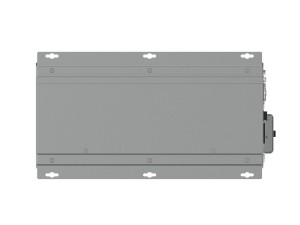

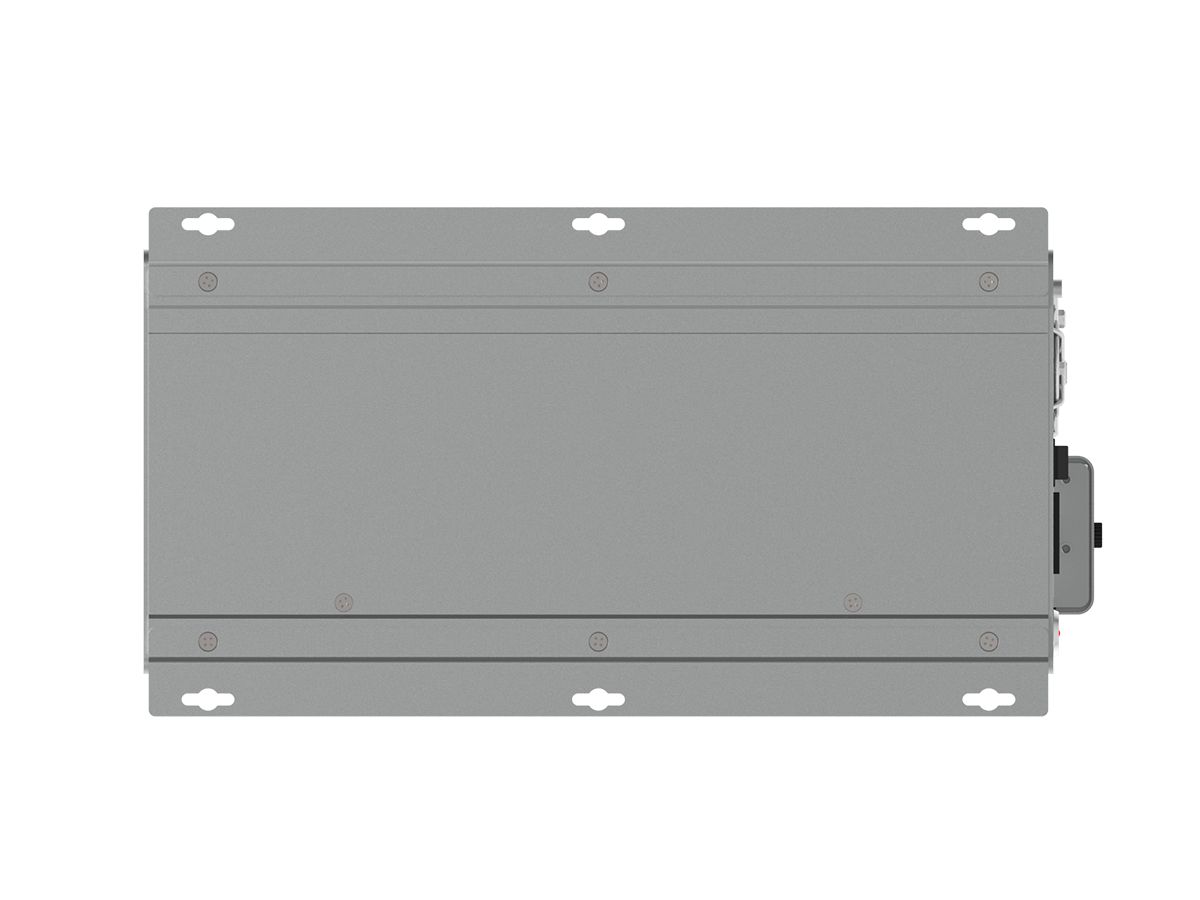

| Mounting | ?Wall mounted, Desktop | |
|
Environment |

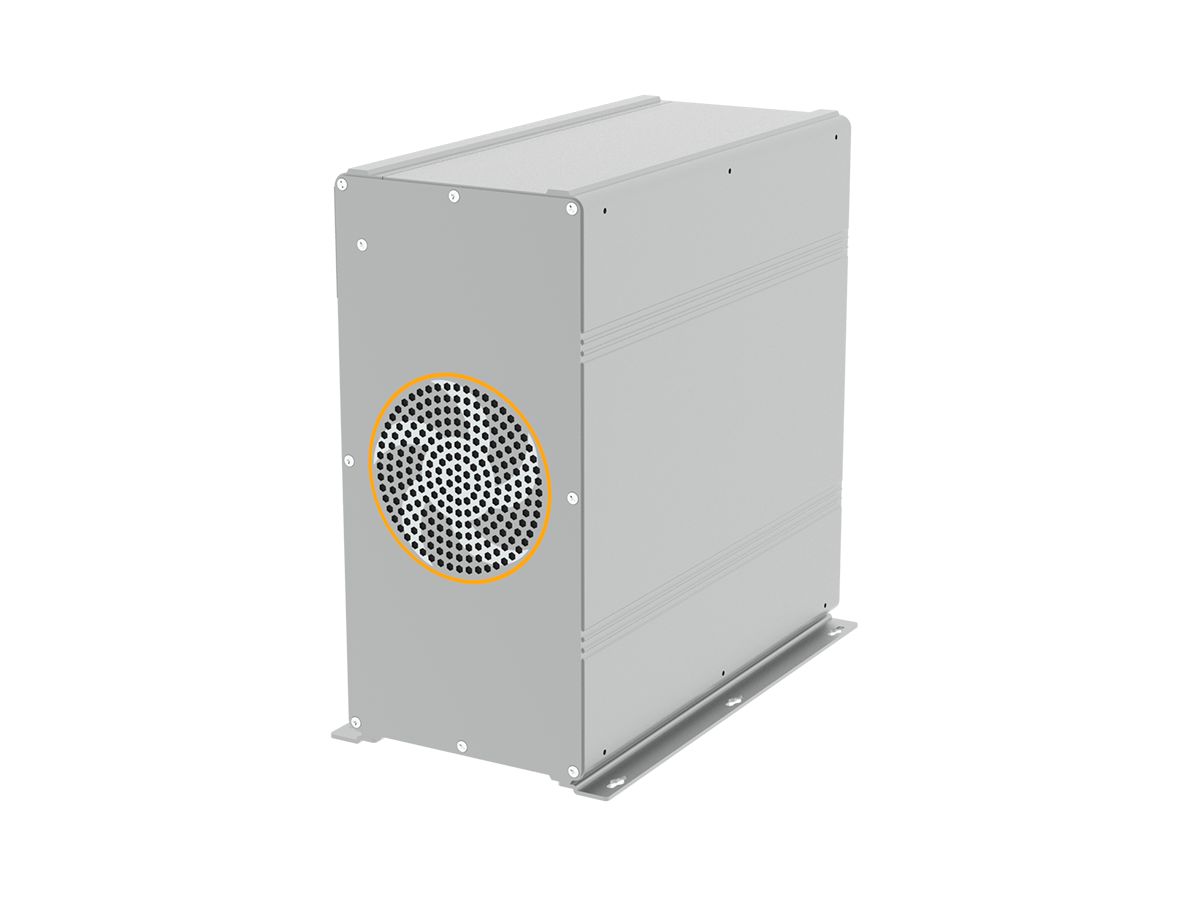

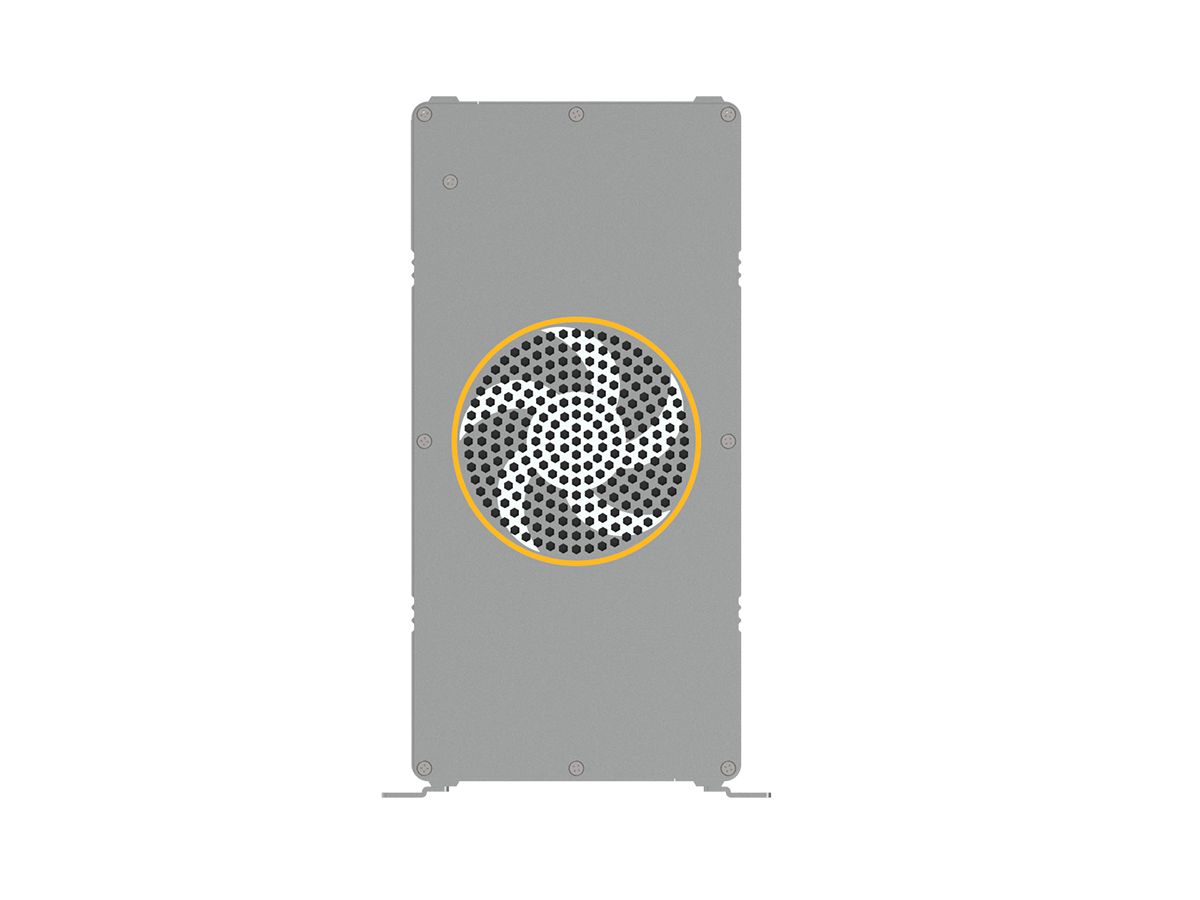

Heat Dissipation System | ?PWM fan cooling |
| Operating Temperature | ?0 ~ 60℃ | |
| Storage Temperature | ?-20 ~ 75℃ | |
| Relative Humidity | ?10 to 95% RH (non-condensing) | |
-
