產品描述

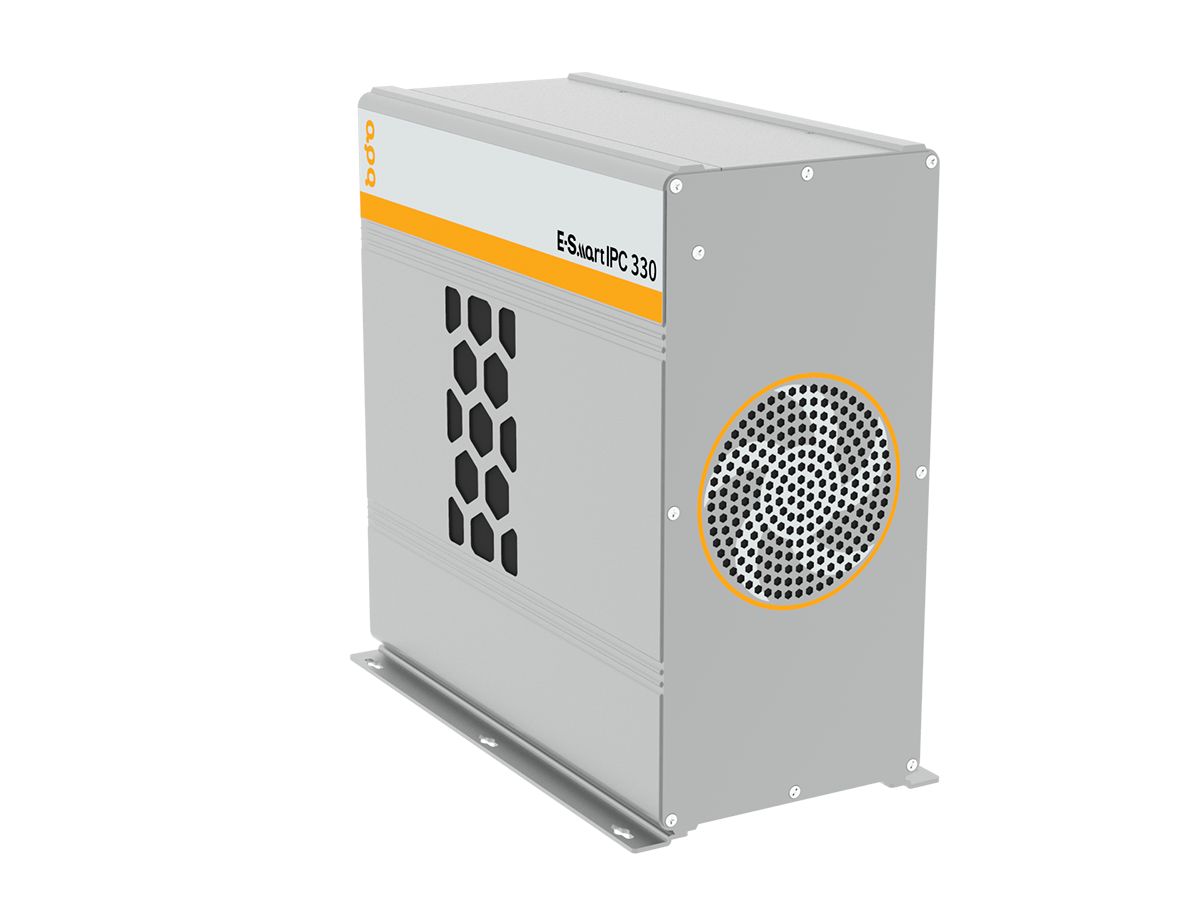

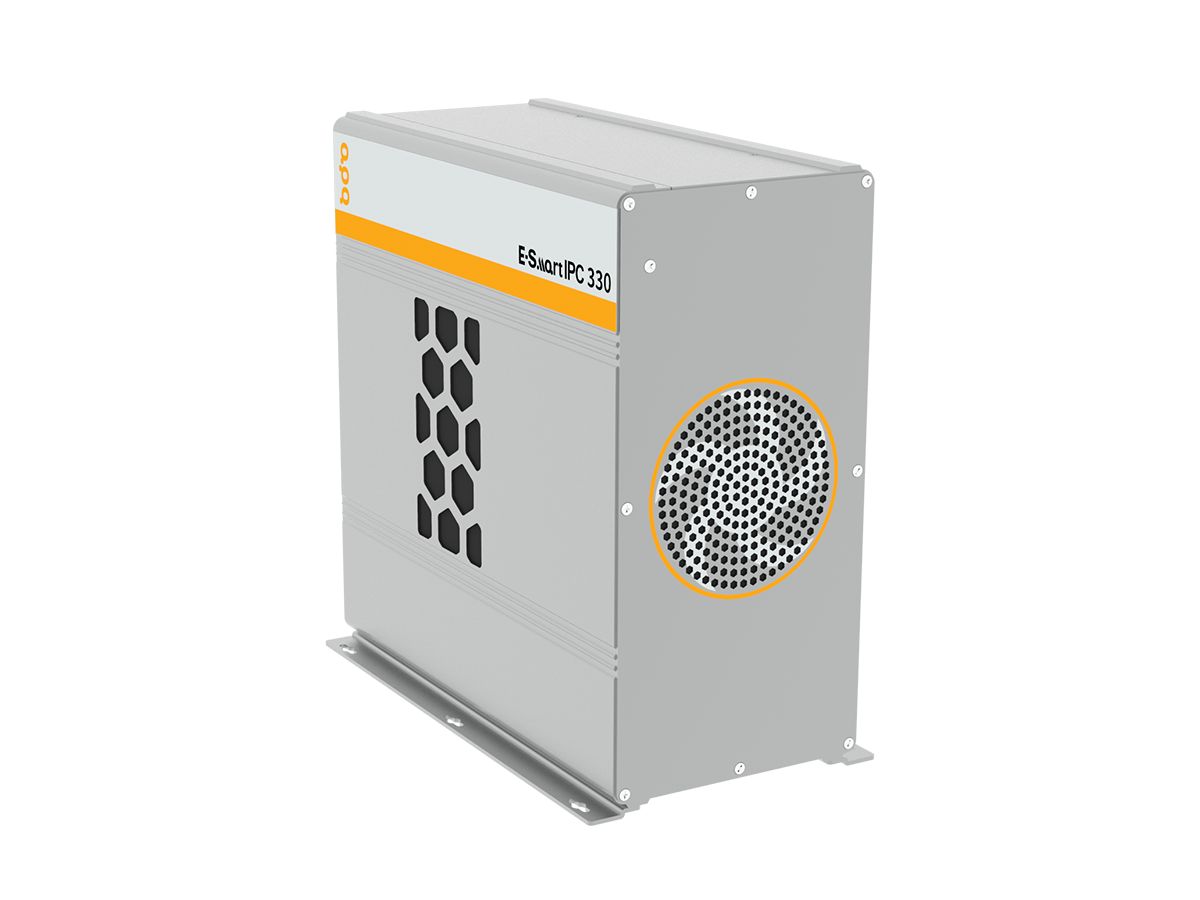

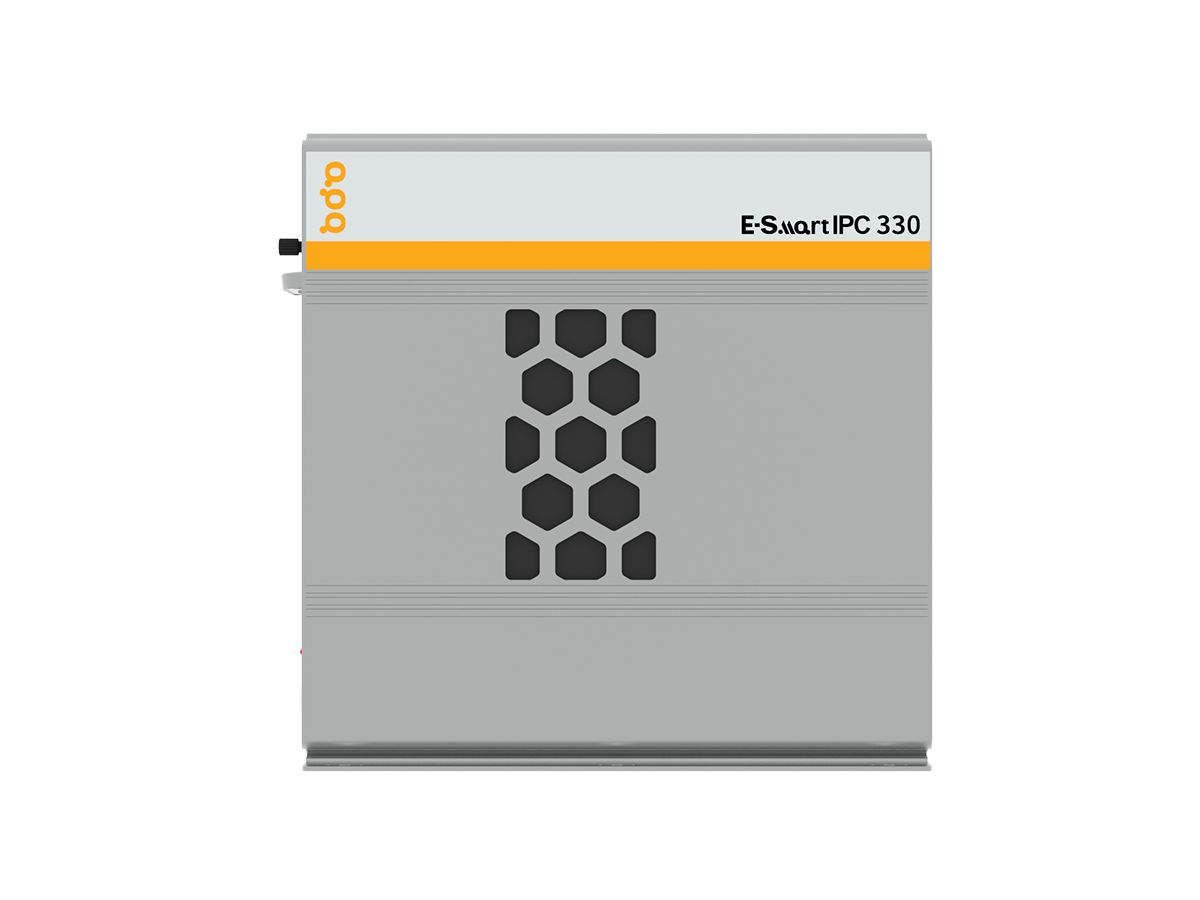

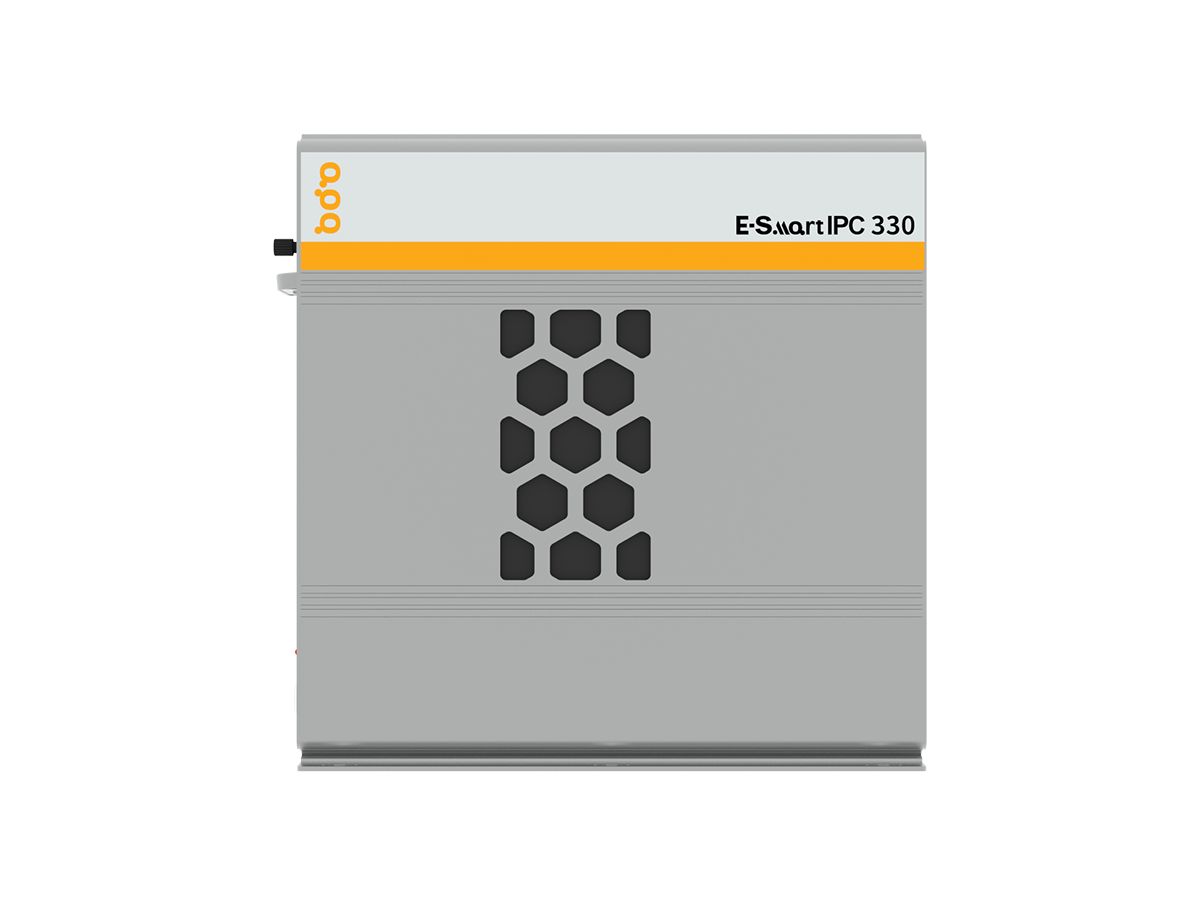

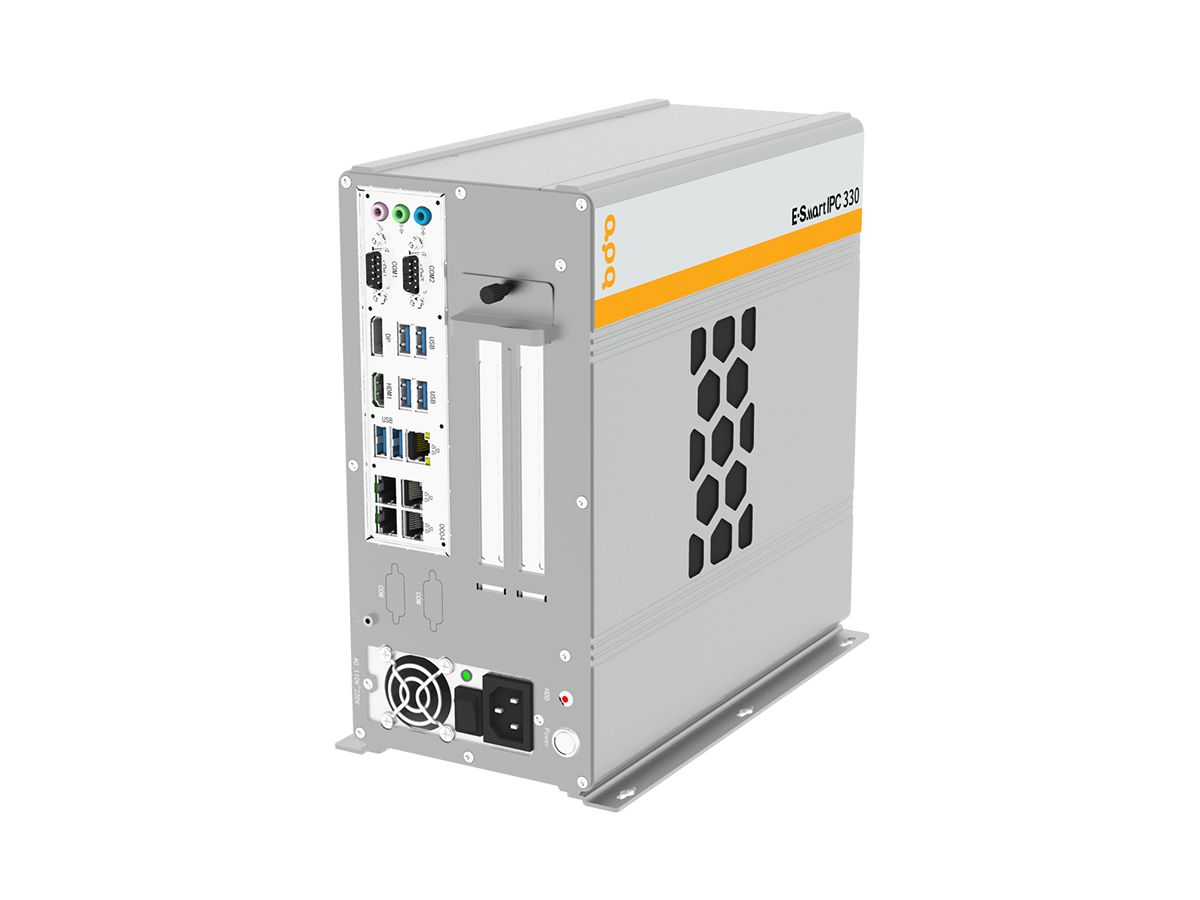

阿普奇壁掛式工控機IPC330D-H31CL5是一款性能卓越的工業電腦，專為各種工業場景設計。其穩定可靠的性能得益于采用鋁合金模具成型，確保了出色的散熱效果和結構強度。這款工控機支持英特爾第6至9代Core/Pentium/Celeron桌面CPU，具備強大的數據處理能力，能夠快速應對各種邊緣計算任務。同時，它可安裝標準ITX主板并支持標準1U電源，降低能耗，進一步提升了能效比。在擴展性方面，IPC330D-H31CL5可選的適配器卡支持2個PCI或1個PCIe X16擴展，滿足用戶對擴展的需求。此外，該款工控機默認配備的2.5英寸7mm防震硬盤插槽設計，能夠更好地保護硬盤的安全性，確保數據存儲的可靠性。前面板開關設計以及電源和存儲狀態顯示，使得系統維護更加便捷。支持多方位壁掛和桌面安裝，為用戶提供更多的選擇，滿足各種工業應用的需求。
綜上所述，阿普奇壁掛式工控機IPC330D-H31CL5憑借其卓越的性能、穩定可靠的結構、強大的擴展能力和數據安全保護等特點，適用于工業自動化控制、智能交通、數字醫療、智能電網等領域。
|
Model |
IPC330D-H31CL5 |
|
|
Processor System |
CPU | ?Support Intel? 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | ?65W | |
| Socket | ?LGA1151 | |
| Chipset | ?H310C | |
| BIOS | ?AMI 256 Mbit SPI | |
|
Memory |
Socket | ?2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz |
| Capacity | ?64GB, Single Max. 32GB | |
|
Graphics |
Controller | ?Intel? UHD Graphics |
|
Ethernet |
Controller | ?4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket) ?1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
SATA | ?2 * SATA3.0 7P Connector, up to 600MB/s |
| mSATA | ?1 * mSATA (SATA3.0, Share slot with Mini PCIe, default) | |
|
Expansion Slots |
PCIe | ?1 * PCIe x16 slot (Gen 3, x16 signal) |
| Mini PCIe | ?1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with Msat, Opt.) | |
|

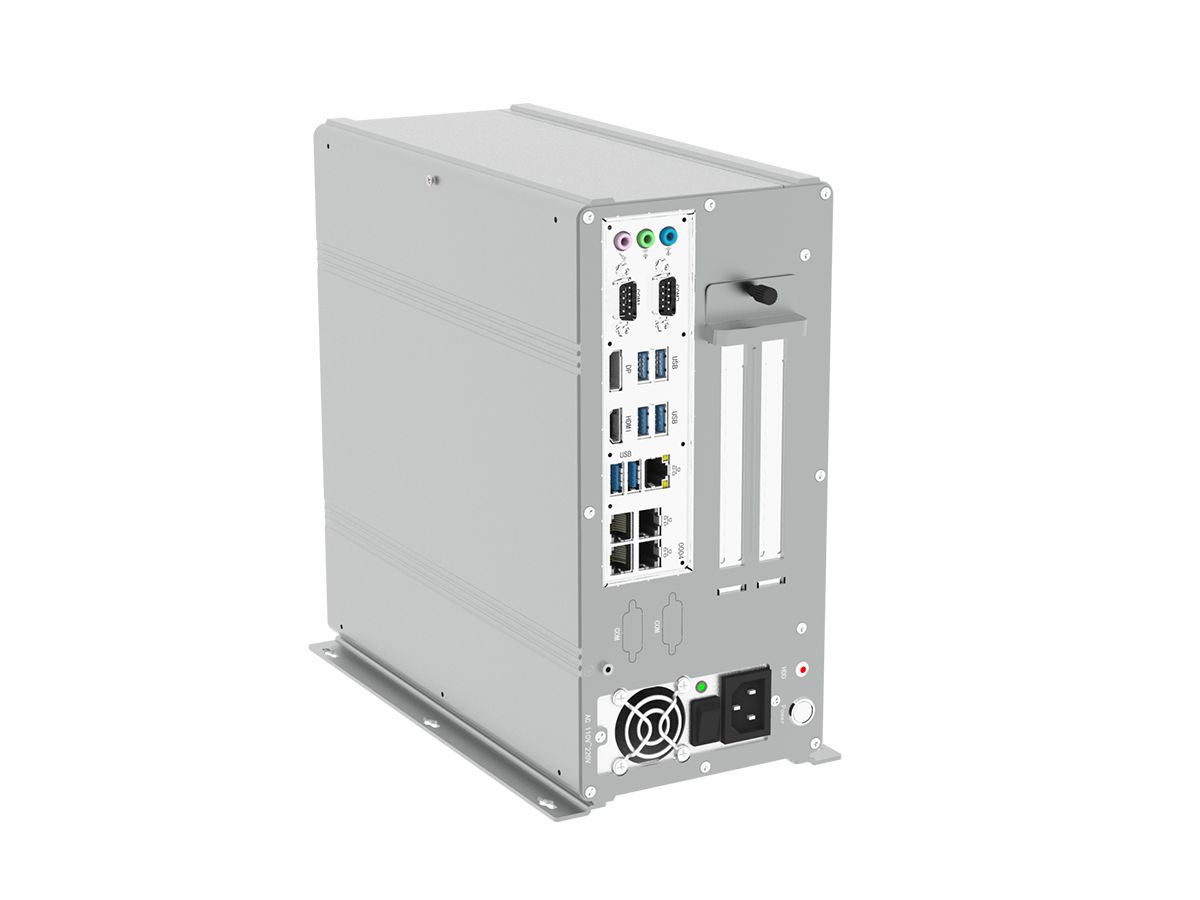

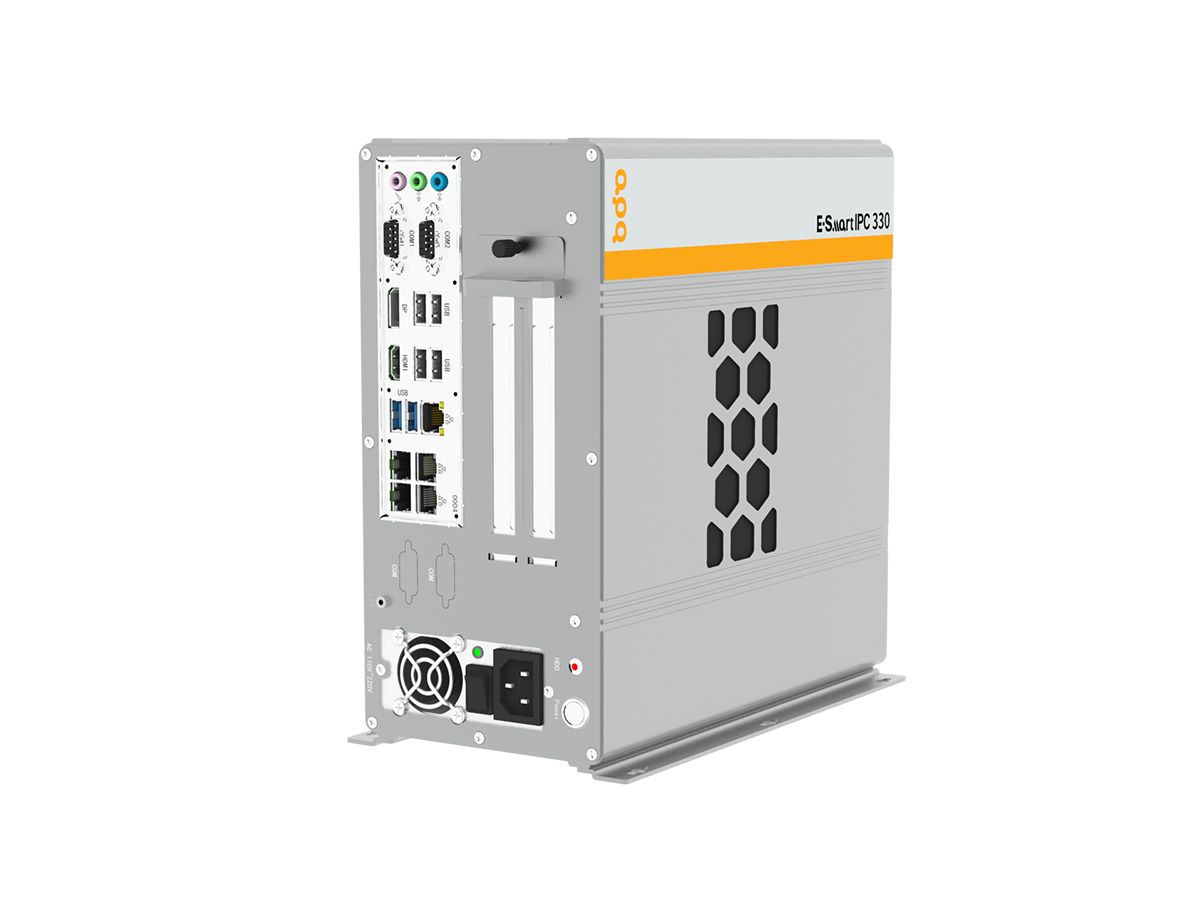

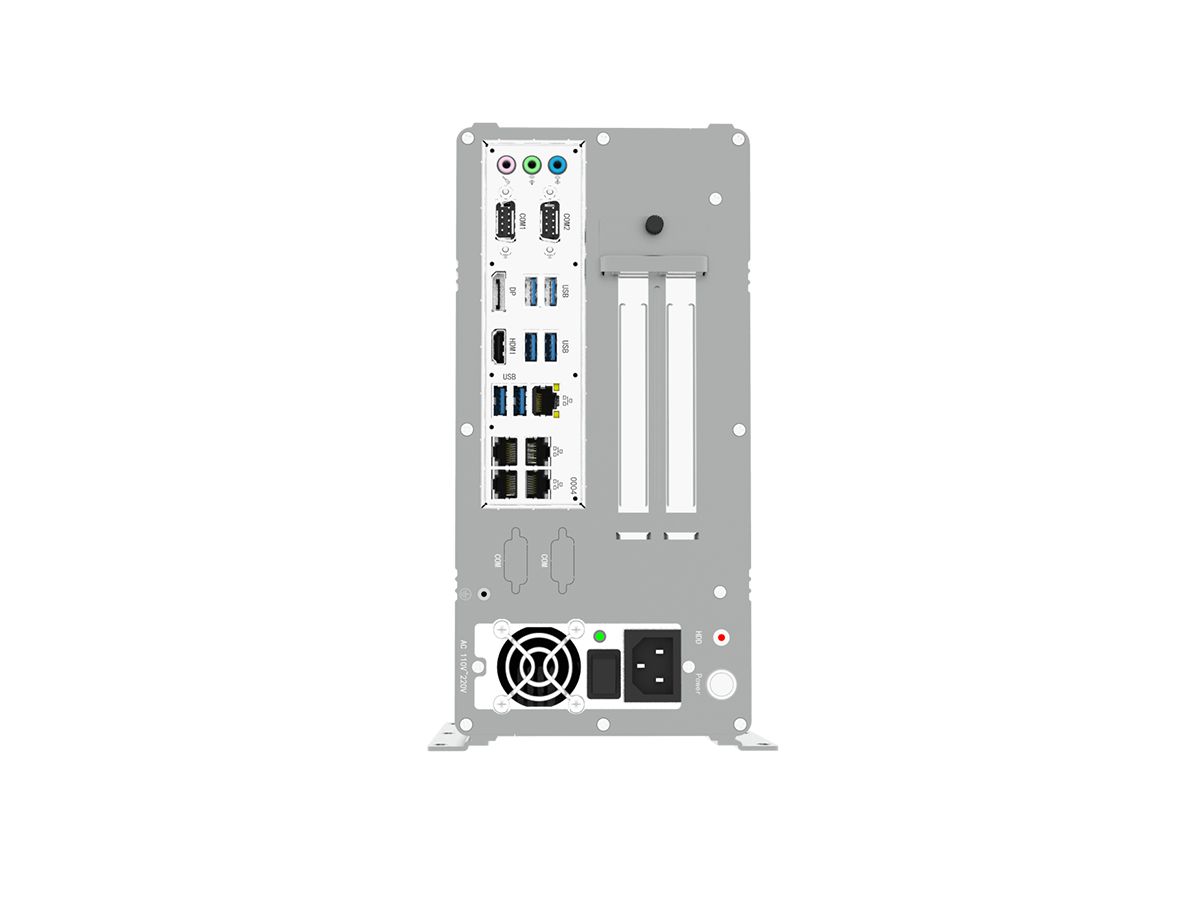

Front I/O |
Ethernet | ?5 * RJ45 |
| USB | ?4 * USB3.2 Gen 1x1 (Type-A, 5Gbps, Each group of two ports Max. 3A, one port Max. 2.5A) ?2 * USB2.0 (Type-A, Each group of two ports Max. 3A, one port Max. 2.5A) |
|
| Display | ?1 * DP: max resolution up to 3840*2160 @ 60Hz ?1 * HDMI1.4: max resolution up to 2560*1440 @ 60Hz |
|
| Audio | ?3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | ?2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Button | ?1 * Power Button | |
| LED | ?1 * Power status LED ?1 * Hard drive status LED |
|
|
Internal I/O |
USB | ?2 * USB2.0 (Header) |
| COM | ?4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | ?1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Serial | ?4 * RS232 (COM3/4/5/6, Header) | |
| GPIO | ?1 * 8 bits DIO (4xDI and 4xDO, wafer) | |
| SATA | ?2* SATA 7P Connector | |
| FAN | ?1 * CPU FAN (Header) ?1 * SYS FAN (Header) |
|
| Front Panel | ?1 * Front Panel (Header) | |
|
Power Supply |
Type | ?1U FLEX |
| Power Input Voltage | ?AC power supply, voltage and frequency shall be based on the IU FLEX power supply provided | |
| RTC Battery | ?CR2032 Coin Cell | |
|
OS Support |
Windows | ?6/7th?Core?: Windows 7/10/11 ?8/9th Core?: Windows 10/11 |
| Linux | ?Linux | |
|
Watchdog |
Output | ?System Reset |
| Interval | ?Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | ?SGCC+AI6061 |
| Dimensions | ?266mm * 127mm * 268mm | |

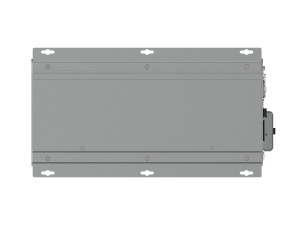

| Mounting | ?Wall mounted, Desktop | |
|
Environment |

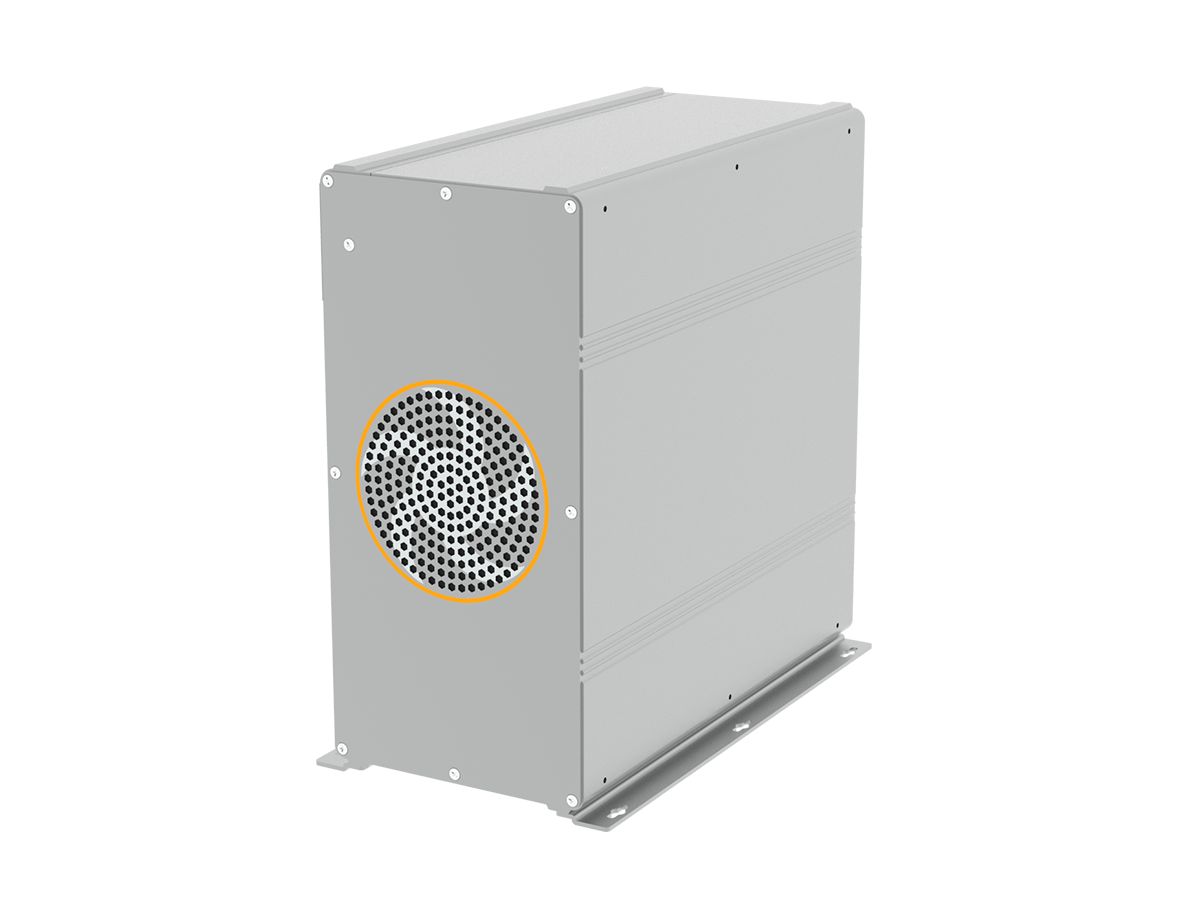

Heat Dissipation System | ?PWM fan cooling |
| Operating Temperature | ?0 ~ 60℃ | |
| Storage Temperature | ?-20 ~ 75℃ | |
| Relative Humidity | ?10 to 95% RH (non-condensing) | |
-
