產品描述
阿普奇嵌入式工控機E5S系列是一款專為工業自動化和邊緣計算應用而設計的超緊湊型工業計算機。采用Intel J6412/N97/N305低功耗四核處理器，高效且穩定，確保流暢運行各類應用。雙千兆網卡為大數據傳輸提供穩定通道，滿足實時通信需求。8GB LPDDR4內存確保流暢的多任務處理，提供高效計算能力。此外，2個板載顯示接口方便實時監控，雙硬盤存儲設計滿足數據存儲需求。該系列還支持WiFi/4G無線擴展，方便實現無線連接和控制，進一步擴展了其應用場景。適應12~28V直流寬壓電源，確保在各種環境下的穩定性。超緊湊的機身設計和無風扇散熱系統使得E5S系列適合更多的嵌入式場景。無論是在狹小的空間內還是在惡劣的環境中，E5S系列都能提供穩定高效的計算支持。
總之，阿普奇E5S系列嵌入式工控機憑借強大的性能和豐富的接口，為工業自動化和邊緣計算提供了堅實后盾，滿足各種復雜應用場景的需求。
| Model | E5S | |||
| Processor System | CPU | Intel? ?Elkhart?Lake?J6412 | Intel??Alder?Lake?N97 | Intel??Alder?Lake?CoreTM?i3-N305 |
| Base?Frequency | 2.00?GHz | 2.0?GHz | 1?GHz | |
| Max Turbo?Frequency | 2.60?GHz | 3.60?GHz | 3.8GHz | |
| Cache | 1.5MB | 6MB | 6MB | |
| Total Cores/Threads | 4/4 | 4/4 | 8/8 | |
| Chipset | SoC | |||
| BIOS | AMI?UEFI?BIOS | |||
| Memory | Socket | LPDDR4 3200?MHz?(Onboard) | ||
| Capacity | 8GB | |||
| Graphics | Controller | Intel? ?UHD?Graphics | ||
| Ethernet | Controller | 2 *?Intel? ?i210-AT?(10/100/1000?Mbps,?RJ45) | ||
| Storage | SATA | 1 * SATA3.0 Connector?(2.5-inch?hard?disk?with?15+7Pin) | ||
| M.2 | 1 *?M.2?Key-M?Slot?(SATA?SSD,?2280) | |||
| Expansion Slots | aDoor | 1?*?aDoor | ||
| Mini?PCIe | 1 *?Mini?PCIe?Slot?(PCIe2.0x1+USB2.0) | |||

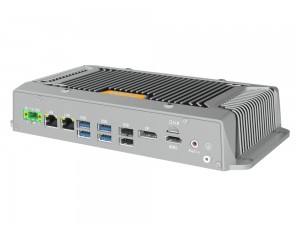

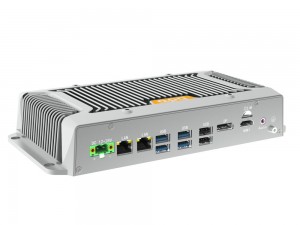

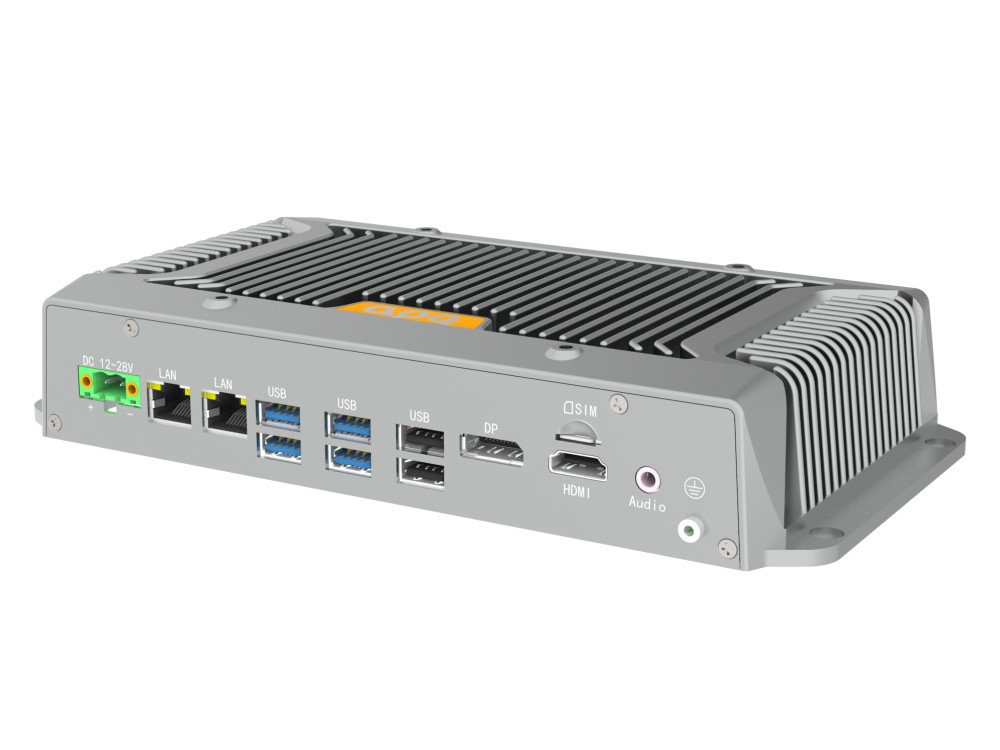

| Front?I/O | USB | 4 *?USB3.0?(Type-A)2 *?USB2.0?(Type-A) | ||
| Ethernet | 2?*?RJ45 | |||
| Display | 1 *?DP++:?max?resolution?up?to?4096x2160@60Hz1 *?HDMI?(Type-A):?max?resolution?up?to?2048x1080@60Hz | |||
| Audio | 1 * 3.5mm?Jack?(Line-Out?+?MIC,?CTIA) | |||
| SIM | 1 *?Nano-SIM Card slot?(Mini?PCIe?module?provides functional support) | |||
| Power | 1 *?Power?Input?Connector?(12~28V) | |||

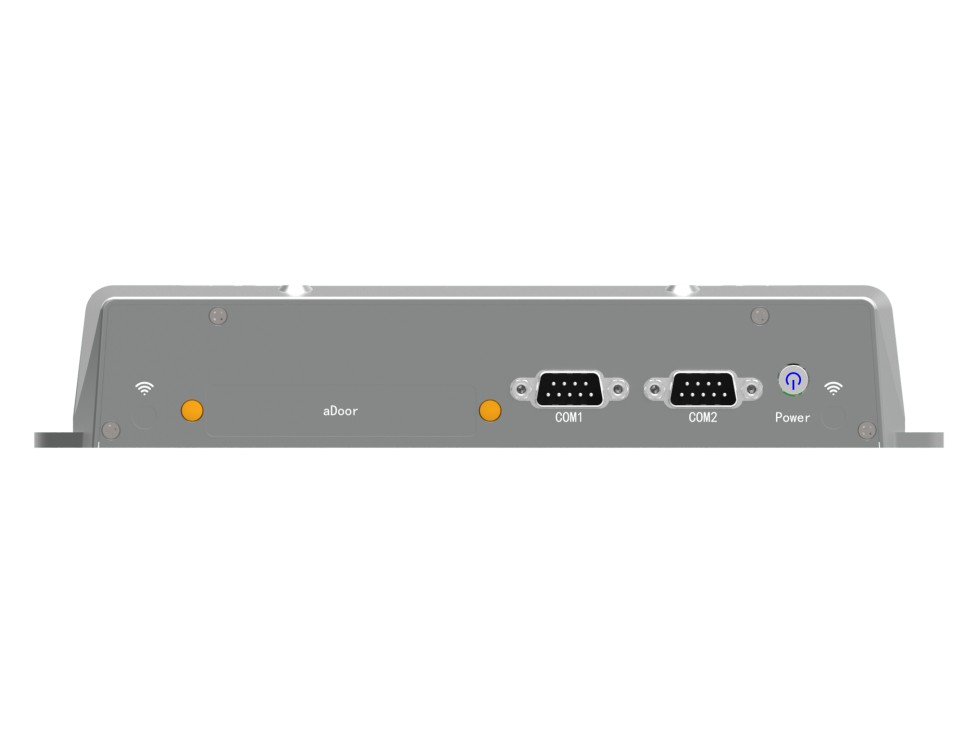

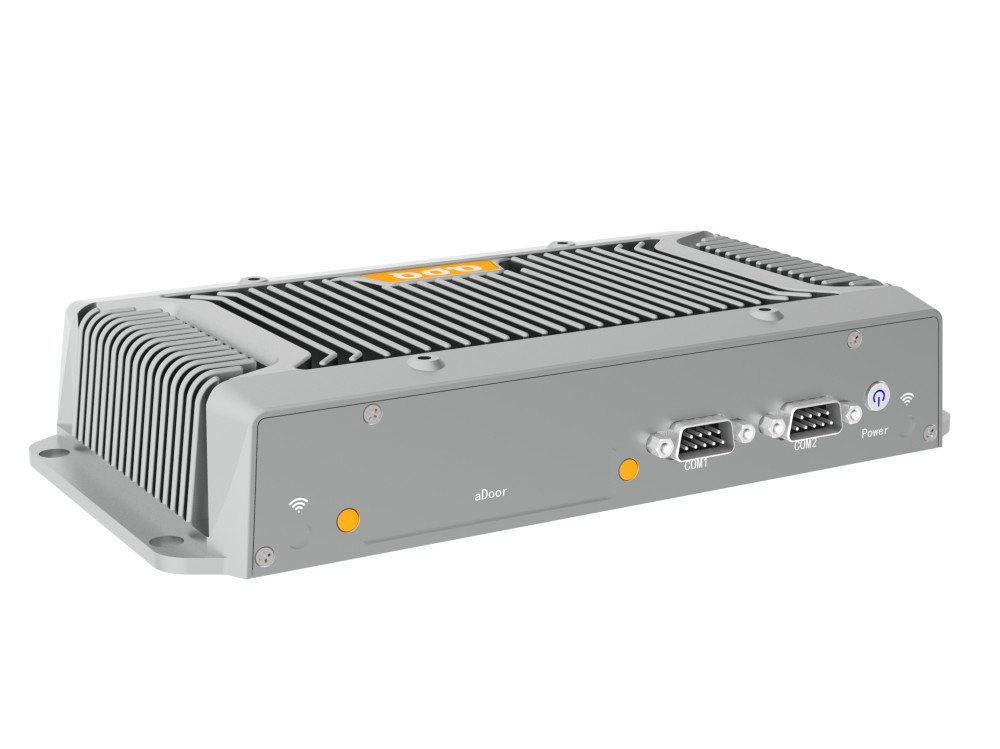

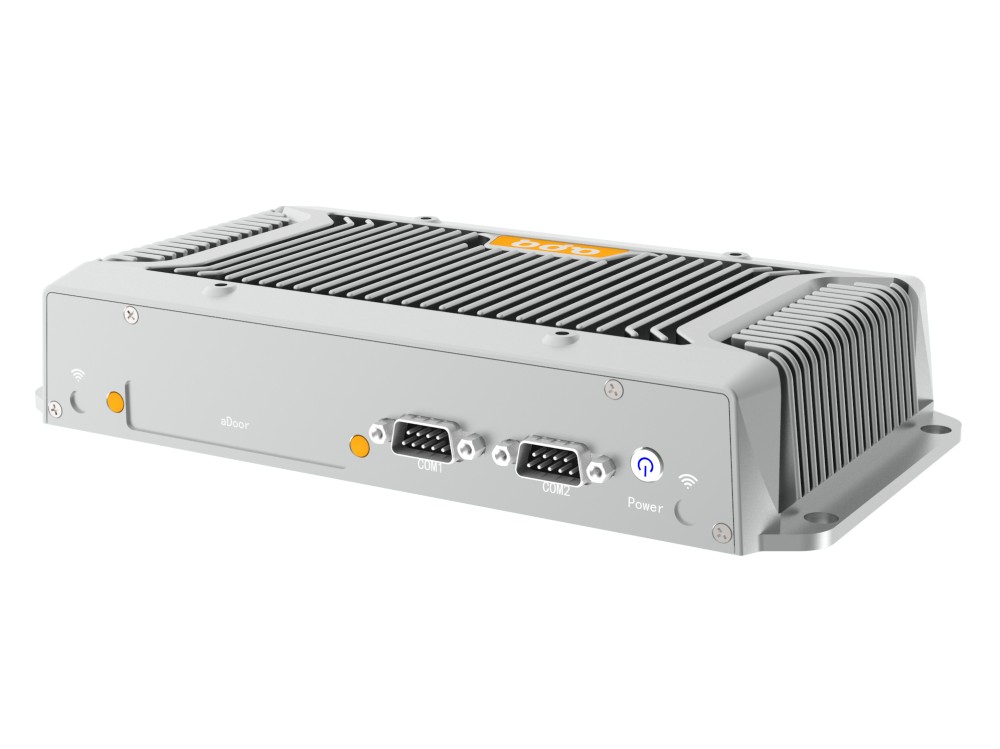

| Rear?I/O | Button | 1 *?Power?Button?with?Power?LED | ||
| Serial | 2 *?RS232/485 (COM1/2,?DB9/M,?BIOS?control) | |||
| Internal?I/O | Front?Panel | 1 *?Front?Panel?(3x2Pin,?PHD2.0) | ||
| FAN | 1 * SYS?FAN?(4x1Pin,?MX1.25) | |||
| Serial | 2 * COM?(JCOM3/4, 5x2Pin,?PHD2.0)2 * COM?(JCOM5/6, 5x2Pin,?PHD2.0) | |||
| USB | 2 *?USB2.0 (F_USB2_1, 5x2Pin,?PHD2.0)2 *?USB2.0 (F_USB2_2, 5x2Pin,?PHD2.0) | |||
| Display | 1 *?LVDS/eDP?(default?LVDS, wafer, 25x2Pin?1.00mm) | |||
| Audio | 1 * Speaker?(2-W (per?channel)/8-Ω?Loads,?4x1Pin,?PH2.0) | |||
| GPIO | 1 *?16bits?DIO?(8xDI?and?8xDO,?10x2Pin,?PHD2.0) | |||
| LPC | 1 *?LPC?(8x2Pin,?PHD2.0) | |||
| Power Supply | Type | DC | ||
| Power?Input Voltage | 12~28VDC | |||
| Connector | 1 * 2Pin?Power?Input?Connector?(12~28V,?P=?5.08mm) | |||
| RTC?Battery | CR2032 Coin?Cell | |||
| OS Support | Windows | Windows?10/11 | ||
| Linux | Linux | |||
| Watchdog | Output | System?Reset | ||
| Interval | Programmable?1 ~ 255?sec | |||
| Mechanical | Enclosure?Material | Radiator: Aluminum,?Box: SGCC | ||

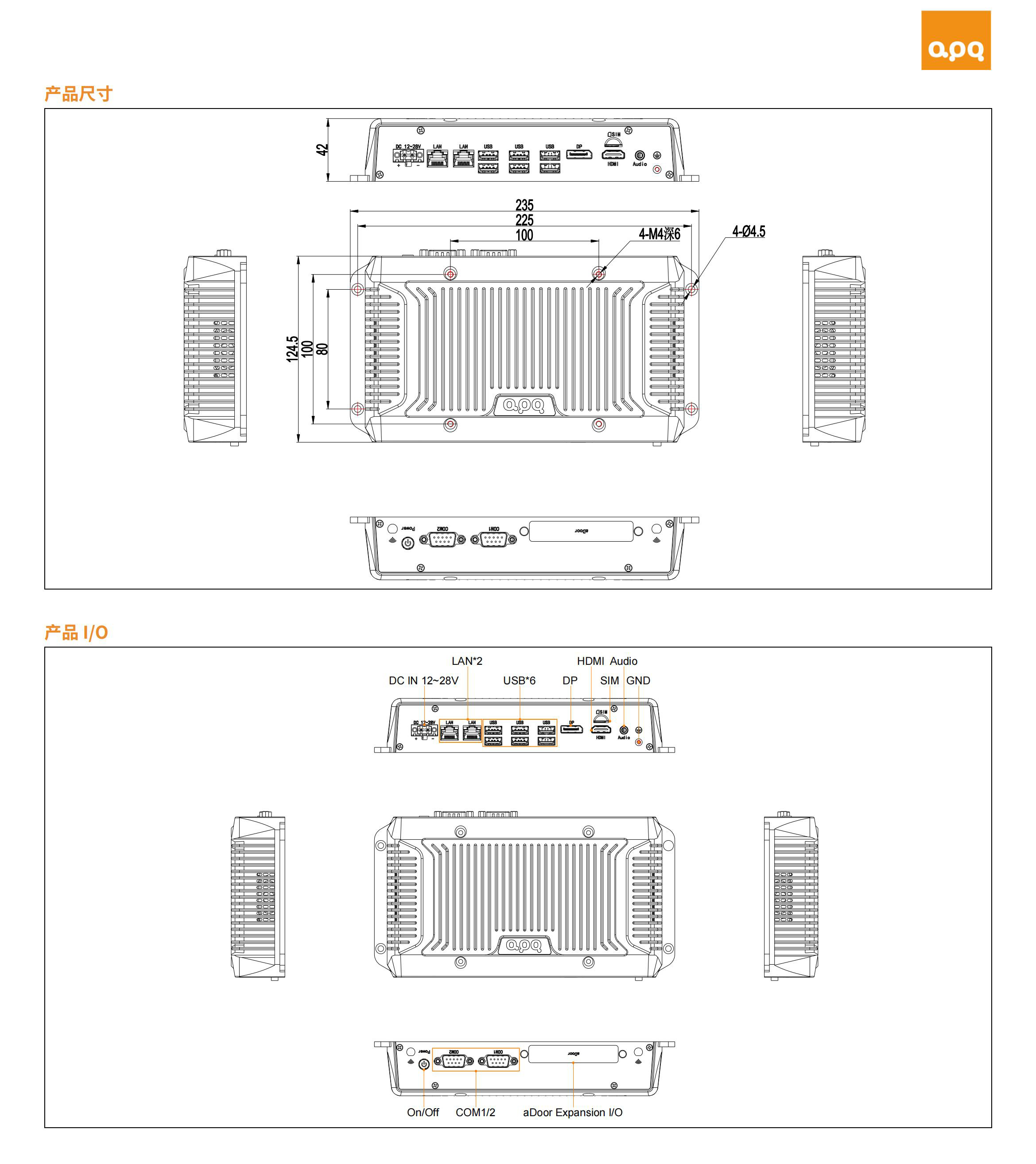

| Dimensions | 235mm(L) *?124.5mm(W) * 42mm(H) | |||
| Weight | Net:?1.2Kg, Total: 2.2Kg?(include?packaging) | |||
| Mounting | VESA, Wallmount,?Desk?mounting | |||
| Environment | Heat?Dissipation System | Passive heat?dissipation | ||
| Operating Temperature | -20~60℃ | |||
| Storage Temperature | -40~80℃ | |||
| Relative?Humidity | 5 to?95%?RH?(non-condensing) | |||
| Vibration?During Operation | With?SSD:?IEC?60068-2-64?(3Grms@5~500Hz, random,?1hr/axis) | |||
| Shock?During Operation | With?SSD:?IEC?60068-2-27?(30G,?half?sine,?11ms) | |||
-
